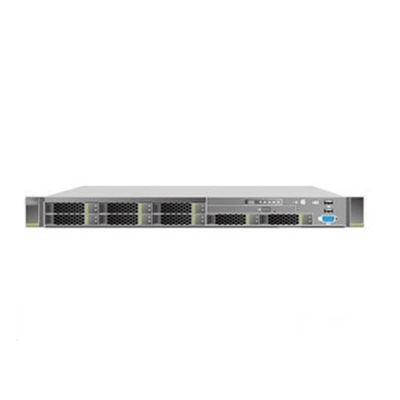

Intel Xeon Gold 6148 1U Rack Server Fusion Server Pro 1288H V5 For Computing

Form factor

1U rack server

CPU

* Maximum frequency: 3.6 GHz (four cores)
* Two UPI links: 10.4 GT/s
* Maximum L3 cache capacity per core: 1.375
MB
* Maximum thermal design power (TDP): 205 W

RAID controller card

The 1288H V5 supports the following RAID controller cards:
* LSI SAS3008 (SR130): supports RAID 0, 1, 10, and 1E, and does not support out-of-band iBMC management.

* LSI SAS3008 (SR130-M): supports the IT mode and out-of-band iBMC management, and does not support RAID arrays.

* LSI SAS3108 (SR430C-M): supports RAID 0, 1, 10, 5, 50, 6, and 60, a supercapacitor for power-off protection, and out-of-band
iBMC management.

* Broadcom SAS3508 (SR450C-M 2G/4G): supports RAID 0, 1, 10, 5, 50, 6, and 60, a supercapacitor for power-off protection, and
out-of-band iBMC management.

* Broadcom SAS3408 (SR150-M): supports RAID 0, 1, and 10, and out-of-band iBMC management, but does not support power-off
protection.
