Product Details:
|
| Products Status: | Stock | Type: | Wired & Wireless |
|---|---|---|---|
| VPN Support: | Yes | Throughput: | 2/2/2 Gbit/s |

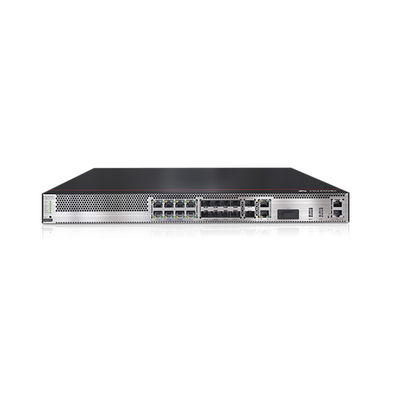

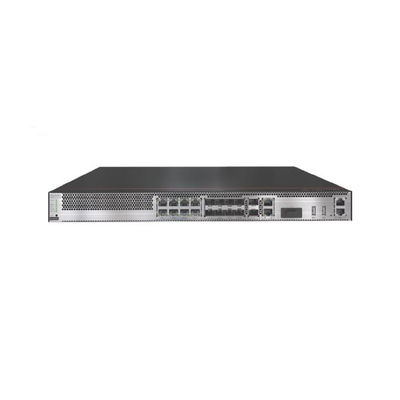

| Simultaneous Sessions: | - | Product Name: | USG6525E-AC Host 2*GE WAN+8*GE Combo+2*10GE SFP+ Firewall |
| Products Status:: | Stock | Form Factor/Height:: | 1U |
| Fixed Interface:: | 2x10GE (SFP+) + 8xGE Combo+ 2xGE WAN | Dimensions (H X W X D) Mm: | 43.6 X 442 X 420 |
| Weight (Full Configuration): | 5.8kg | AC Power Supply: | 100v-240v |
| USB Port: | 1xUSB 2.0+ 1xUSB 3.0 | Extermal Storage: | Optional, SSD (M.2) Card Supported, 64GB/240GB |
| Max Power Consumption Of: | 40w | Port: | Beijing |
| High Light: | usg6525e-ac advanced firewall,usg6525e-ac hardware firewall,100v advanced firewall |
||
|
Model
|
USG6525E
|
USG6555E
|
USG6565E
|
USG6575E-B
|
USG6585E
|
||||
|
Dimensions (HxWxD) mm
|
43.6x442x420
|
|
|
|
|
||||
|
Form Factor/Height
|
1U
|
|
|
|
|
||||
|
Fixed Interface
|
2x10GE (SFP+) + 8xGE Combo+ 2xGE WAN
|
|
|
16GE (RJ45) + 8xGE Combo+ 2x10GE (SFP+)
|
2x10GE (SFP+) + 8xGE Combo+ 2xGE WAN
|
||||
|
Dedicated management port
|
YES
|
|
|
|
|
||||
|
Bypass Port
|
--
|
|
|
YES
|
--
|
||||
|
USB Port
|
1xUSB 2.0+ 1xUSB 3.0
|
|
|
1xUSB 3.0
|
1xUSB 2.0 +1xUSB 3.0
|
||||
|
Weight (Full Configuration)
|
5.8 kg
|
|
|
|
|
||||
|
Extermal Storage
|
Optional, SSD (M.2) card supported, 64GB/240GB
|
Optional, SSD (M.2) card supported, 240GB
|
|
Optional, SSD (1*25 inch) supported, 240GB/960GB,HDD1TB
|
Optional, SSD (M.2) card supported, 240GB
|
||||
|
AC Power Supply
|
100V to 240V
|
|
|
|
|
||||
|
Max power consumption of
|
40W
|
|
|
76.9W
|
40W
|
||||
|
Power Supplies
|
Single AC power supply; optional dual AC power supplies
|
|
|
|
|
||||
|
Operating Environment(Temperature/Humidity)
|
Temperature: 0°C to 45°C
Humidity: 5% to 95%, non-condensing
|
|
|
|
|
||||
|
Non-operating Environment
|
Temperature: -40°C to +70°C
Humidity: 5% to 95%, non-condensing
|
|
|
|
|
||||
