Product Details:
|
| Products Status: | Stock | Type: | Wired & Wireless |
|---|---|---|---|
| VPN Support: | Yes | Throughput: | 2/2/2 Gbit/s |

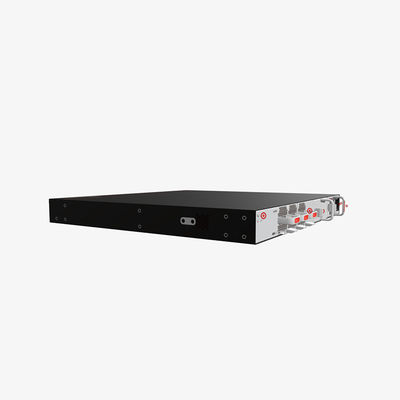

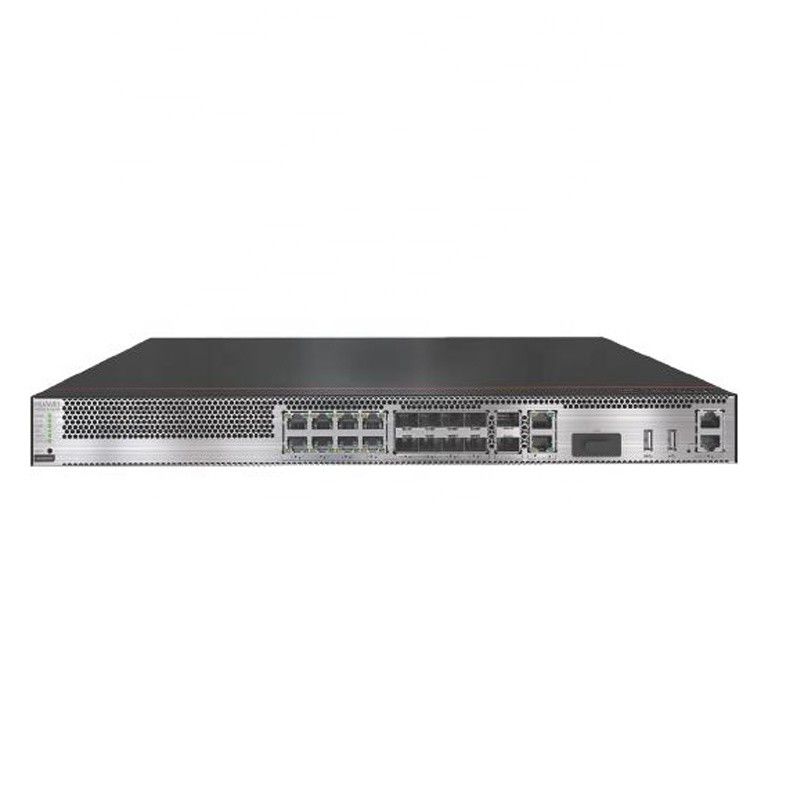

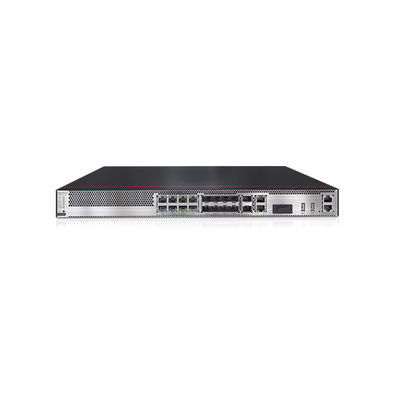

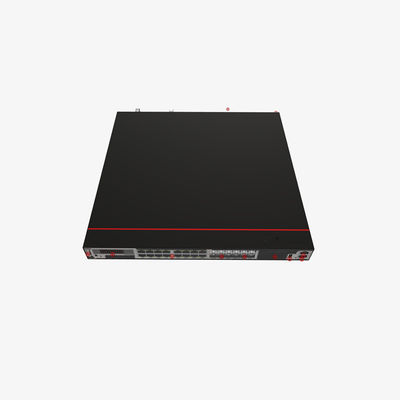

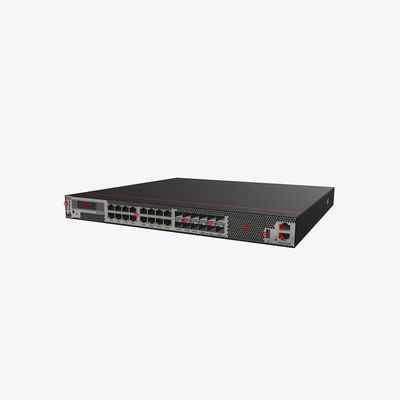

| Simultaneous Sessions: | - | Product Name: | USG6309E Firewalls Full Gigabit 4-Port Desktop USG6309E-AC |
| Products Status:: | Stock | Form Factor/Height:: | 1U |
| Firewall Latency (64-byte, UDP):: | 18 | USB Port:: | 1 X USB 2.0 + 1 X USB 3.0 |
| Fixed Interface:: | 2 X 10GE (SFP+) + 8 X GE Combo + 2 X GE WAN | Firewall Throughput:: | 2/2/2 Gbit/s |
| IPsec VPN Throughput:: | 2 Gbit/s | Dimensions (H X W X D) Mm: | 43.6 X 442 X 420 |
| Device Type:: | Security Appliance | Port: | Beijing |
| High Light: | USG6309E Hardware Firewall,Hardware Firewall Full Gigabit,Desktop USG6309E-AC |
||
|
HiSecEngine USG6300E
|
|
|
|
|
|
|
||||||
|
Modle
|
USG6305E-AC / USG6309E-AC
|
USG6315E-AC / USG6325E-AC
|
USG6335E-AC / USG6355E-AC
|
USG6365E-AC / USG6385E-AC
|
USG6391E-AC
|
USG6395E-AC
|
||||||
|
Fixed Interfaces
|
2*10GE(SFP+)+8*GE Combo+2*GE WAN
|
|
|
|
12×GE (RJ45) +8GE (SFP) + 4×10GE (SFP+)
|
6*10GE(SFP+)+
6*GE(SFP)+ 16*GE |
||||||
|
Product Model
|
1U
|
|
|
|
|
|
||||||
|
Local Storage
|
Optional, support M.2 card, 64g/240g
|
|
|
|
Optional 2.5-inch hard disk, supporting 240GB/960GB SSD and 1TB HDD
|
|
||||||
|
Integrated Protection
|
Provides firewall, VPN, intrusion prevention, antivirus, data leak prevention,
bandwidth management, anti-DDoS, URL filtering, and anti-spam functions |
1+1 backup, with 1 150W AC power module by default
|
1+1 backup, with 1 150W AC power module by default
|
1+1 backup, with 1 150W AC power module by default
|
1+1 backup, with 1 150W AC power module by default
|
1+1 backup, with 1 150W AC power module by default
|
||||||
|
Application identification and control
|
Identifies more than 6,000 applications with the access control granularity to application functions, for example, distinguishing
between WeChat text and voice. Combines application identification with intrusion detection, antivirus, and data filtering,improving detection performance and accuracy. |
NA
|
NA
|
1 expansion slot
|
NA
|
NA
|
||||||
|
Bandwidth Management
|
Manages per-user and per-IP bandwidth in addition to identifying service applications to ensure the network access experience of key services and users. Control methods include limiting the maximum bandwidth, ensuring the minimum bandwidth, applying PBR, and changing application forwarding priorities.
|
|
|
|
|
|
||||||
|
Intrusion prevention and Web protection
|
Obtains the latest threat information in a timely manner for accurate detection and defense against vulnerability-based attacks.
The device can defend against web-specific attacks, including SQL injection and XSS attacks. |
|
|
|
|
|
||||||
|
AAPT
|
Interact with local and cloud sandboxes to detect and block malicious files
Encrypted traffic does not need to be decrypted, and is linked to the big data analysis platform HiSec Insight to detect encrypted traffic threats. Actively respond to malicious scanning behaviors, and conduct behavior analysis by linking the big data analysis platform HiSec Insight to quickly discover and record malicious behaviors, thus realizing real-time protection against enterprise threats. |
|
|
|
|
|
||||||
|
Cloud management mode
|
Initiates authentication and registration to the cloud management platform to implement plug-and-play and simplify network creation and deployment.
Remote service configuration management, device monitoring, and fault management are used to implement cloud-based management of mass devices. |
|
|
|
|
|
||||||
|
