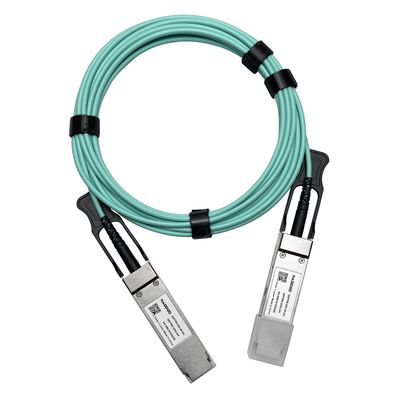

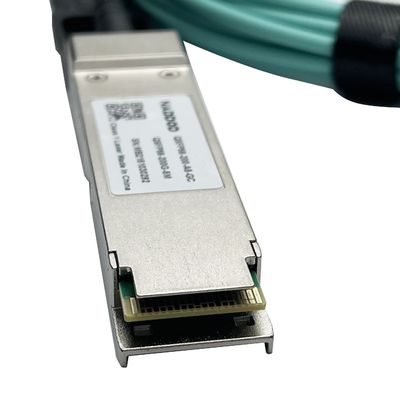

IB EDR Active Optical Cable 10m Q2Q56-200-A10H QSF56-200-A10H

IB EDR Active Optical Cable 10m Q2Q56-200-A10H QSF56-200-A10H
IB EDR Active Optical Cable 10m Q2Q56-200-A10H QSF56-200-A10H IB EDR Active Optical Cable 10m Q2Q56-200-A10H QSF56-200-A10H IB EDR Active Optical Cable 10m Q2Q56-200-A10H QSF56-200-A10H IB EDR Active Optical Cable 10m Q2Q56-200-A10H QSF56-200-A10H IB EDR Active Optical Cable 10m Q2Q56-200-A10H QSF56-200-A10H IB EDR Active Optical Cable 10m Q2Q56-200-A10H QSF56-200-A10H

Large Image :  IB EDR Active Optical Cable 10m Q2Q56-200-A10H QSF56-200-A10H

Product Details:
Place of Origin: Beijing, China
Brand Name: Mellanox
Certification: ce
Model Number: Q2Q56-200-A10H
Payment & Shipping Terms:
Price: $250.00 - $480.00/sets
Packaging Details: box
Supply Ability: 10000 Set/Sets per Month
Contact Now

IB EDR Active Optical Cable 10m Q2Q56-200-A10H QSF56-200-A10H

Description
Type: Indoor Fiber Optic Cable Name: Active Fiber Cable, IB EDR, Up To 100Gb/s, QSFP, LSZH, 5m
Port: Beijing
High Light:

IB EDR Active Optical Cable

,

Active Optical Cable 10m

,

10m active fiber optic cable

Mellanox Q2Q56-200-A10H QSF56-200-A10H Active Fiber Cable 5m 3m 10m Indoor Fiber Optic Cable



Products Description
NVIDIA Network MFA1A00-E005 is an active optical cable based on QSFP28 VCSEL (Vertical Cavity Surface Emitting Laser), designed
for use in InfiniBand 100Gb/s EDR systems. 100G EDR AOCs are the most popular interconnects in high-speed InfiniBand
high-performance computing (HPC) environments because they provide predictable latency, very low power (2.2W), and can increase
airflow and tighter power compared to DAC cables. Curved diameter and longer coverage. Since AOC is a thermal plug-in, it is easy
to install and replace.
MFA1A00-Exxx has a standard SFF-8665 qualified QSFP28 port, which faces the electrical port of the host system. It contains four
multi-mode fiber (MMF) optical transceivers, each with a data rate of up to 26Gb/s.
MFA1A00-Exxx provides optional readjustment per lane for its 25-26Gbp/s optical transmitters and receivers, but AOC also supports
lowering the bit rate without readjustment. The transmitter has a programmable input equalizer and input squeeze function, and the
receiver has a programmable output amplitude and pre-stress function.
IB EDR Active Optical Cable 10m Q2Q56-200-A10H QSF56-200-A10H 0
IB EDR Active Optical Cable 10m Q2Q56-200-A10H QSF56-200-A10H 1
IB EDR Active Optical Cable 10m Q2Q56-200-A10H QSF56-200-A10H 2
IB EDR Active Optical Cable 10m Q2Q56-200-A10H QSF56-200-A10H 3
IB EDR Active Optical Cable 10m Q2Q56-200-A10H QSF56-200-A10H 4
IB EDR Active Optical Cable 10m Q2Q56-200-A10H QSF56-200-A10H 5
IB EDR Active Optical Cable 10m Q2Q56-200-A10H QSF56-200-A10H 6
IB EDR Active Optical Cable 10m Q2Q56-200-A10H QSF56-200-A10H 7
Up to 100Gb/s data rate




Programmable Rx output amplitude and pre-emphasis




Programmable Tx input equalizer




SFF-8665 qualified QSFP28 port




Single 3.3V power supply




2.2W power dissipation (typ, each terminal is reset)




Up to 100 meters




SFF-8636 conforms to I2C management interface




More Products
IB EDR Active Optical Cable 10m Q2Q56-200-A10H QSF56-200-A10H 8
Company Profile
IB EDR Active Optical Cable 10m Q2Q56-200-A10H QSF56-200-A10H 9
Certifications
IB EDR Active Optical Cable 10m Q2Q56-200-A10H QSF56-200-A10H 10

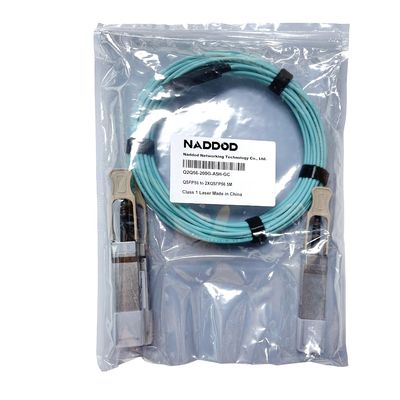

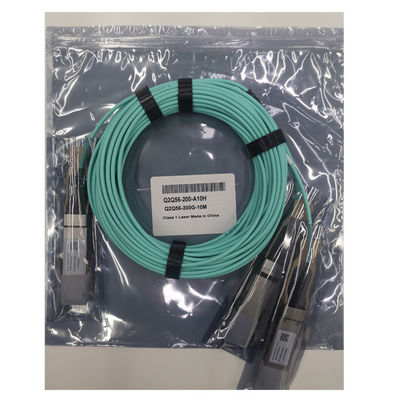

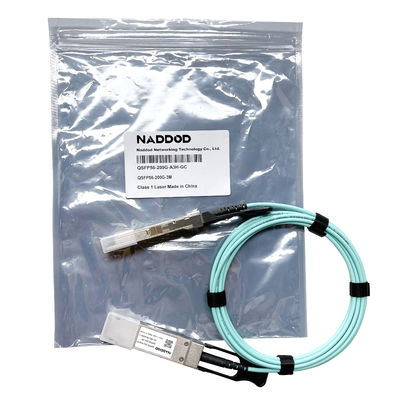

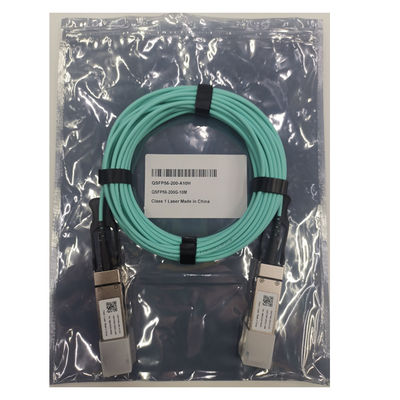

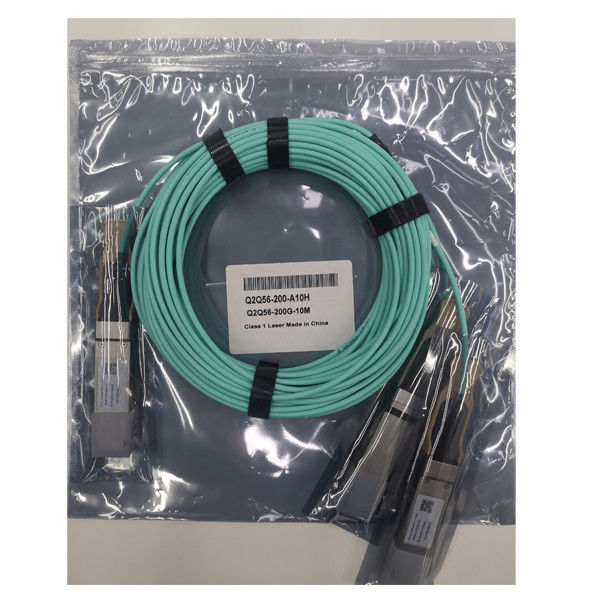

Product packaging
IB EDR Active Optical Cable 10m Q2Q56-200-A10H QSF56-200-A10H 11
IB EDR Active Optical Cable 10m Q2Q56-200-A10H QSF56-200-A10H 12
IB EDR Active Optical Cable 10m Q2Q56-200-A10H QSF56-200-A10H 13
FAQ
Q1: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.

Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.

Q3: What's the lead time.
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.

Q4: What's your warranty terms?
A: We supply 12 months warranty time.

Q5: What's your payment terms?
A: We receive Escrow, T/T, West Union, Cash and etc
