MFA1A00-E005 Active Fiber Cable 5m 3m IB EDR Up To 100Gb/S 200G QSFP LSZH 3

MFA1A00-E005 Active Fiber Cable 5m 3m IB EDR Up To 100Gb/S 200G QSFP LSZH 3
MFA1A00-E005 Active Fiber Cable 5m 3m IB EDR Up To 100Gb/S 200G QSFP LSZH 3 MFA1A00-E005 Active Fiber Cable 5m 3m IB EDR Up To 100Gb/S 200G QSFP LSZH 3 MFA1A00-E005 Active Fiber Cable 5m 3m IB EDR Up To 100Gb/S 200G QSFP LSZH 3 MFA1A00-E005 Active Fiber Cable 5m 3m IB EDR Up To 100Gb/S 200G QSFP LSZH 3 MFA1A00-E005 Active Fiber Cable 5m 3m IB EDR Up To 100Gb/S 200G QSFP LSZH 3

Large Image :  MFA1A00-E005 Active Fiber Cable 5m 3m IB EDR Up To 100Gb/S 200G QSFP LSZH 3

Product Details:
Place of Origin: Beijing, China
Brand Name: Mellanox
Certification: ce
Model Number: MFA1A00-E005
Payment & Shipping Terms:
Price: $250.00 - $480.00/sets
Packaging Details: box
Supply Ability: 10000 Set/Sets per Month
Contact Now

MFA1A00-E005 Active Fiber Cable 5m 3m IB EDR Up To 100Gb/S 200G QSFP LSZH 3

Description
Type: Indoor Fiber Optic Cable Name: Active Fiber Cable, IB EDR, Up To 100Gb/s, QSFP, LSZH, 5m
Product Name: Mellanox Packing: Box
Waranty: 3 Years Port: Beijing
High Light:

Active Fiber Cable 5m

,

MFA1A00-E005 Active Fiber Cable

,

QSFP LSZH 3 Active Fiber Cable

Mellanox MFA1A00-E005 Active Fiber Cable 5m/3m IB EDR Up to 100Gb/s 200G QSFP LSZH 3



Products Description

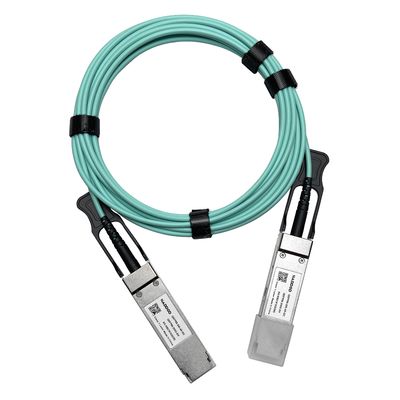

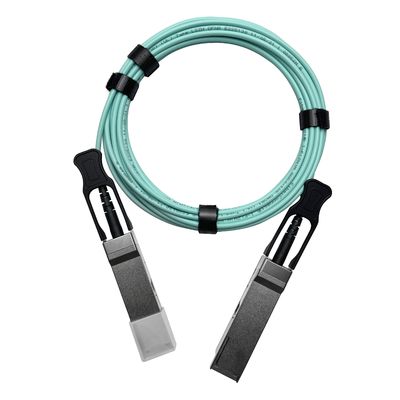

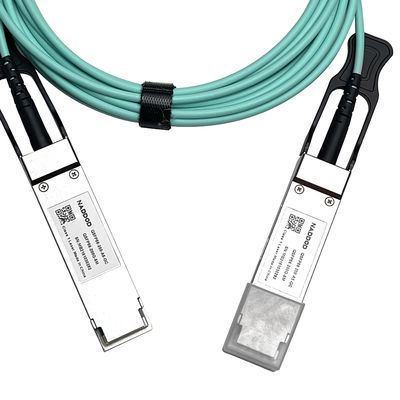

NVIDIA Network MFA1A00-E005 is an active optical cable based on QSFP28 VCSEL (Vertical Cavity Surface Emitting Laser), designed
for use in InfiniBand 100Gb/s EDR systems. 100G EDR AOCs are the most popular interconnects in high-speed InfiniBand
high-performance computing (HPC) environments because they provide predictable latency, very low power (2.2W), and can increase
airflow and tighter power compared to DAC cables. Curved diameter and longer coverage. Since AOC is a thermal plug-in, it is easy
to install and replace.

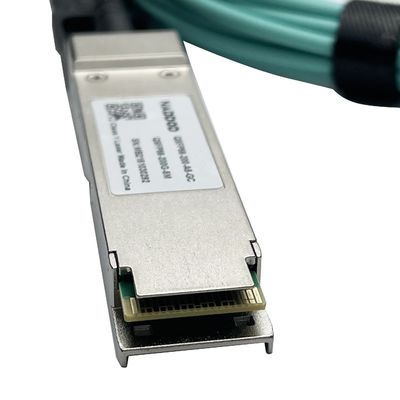

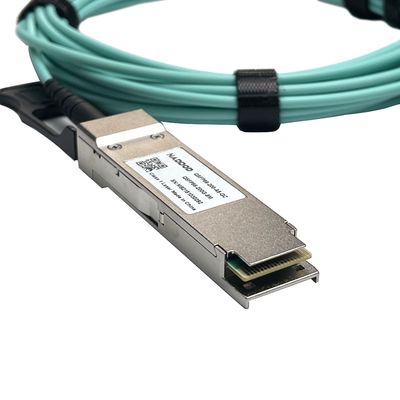

MFA1A00-Exxx has a standard SFF-8665 qualified QSFP28 port, which faces the electrical port of the host system. It contains four
multi-mode fiber (MMF) optical transceivers, each with a data rate of up to 26Gb/s.
MFA1A00-Exxx provides optional readjustment per lane for its 25-26Gbp/s optical transmitters and receivers, but AOC also supports
lowering the bit rate without readjustment. The transmitter has a programmable input equalizer and input squeeze function, and the
receiver has a programmable output amplitude and pre-stress function.
MFA1A00-E005 Active Fiber Cable 5m 3m IB EDR Up To 100Gb/S 200G QSFP LSZH 3 0
MFA1A00-E005 Active Fiber Cable 5m 3m IB EDR Up To 100Gb/S 200G QSFP LSZH 3 1
Up to 100Gb/s data rate




Programmable Rx output amplitude and pre-emphasis




Programmable Tx input equalizer




SFF-8665 qualified QSFP28 port




Single 3.3V power supply




2.2W power dissipation (typ, each terminal is reset)




Up to 100 meters




SFF-8636 conforms to I2C management interface




More Products
MFA1A00-E005 Active Fiber Cable 5m 3m IB EDR Up To 100Gb/S 200G QSFP LSZH 3 2
Company Profile
MFA1A00-E005 Active Fiber Cable 5m 3m IB EDR Up To 100Gb/S 200G QSFP LSZH 3 3
Certifications
MFA1A00-E005 Active Fiber Cable 5m 3m IB EDR Up To 100Gb/S 200G QSFP LSZH 3 4
Product packaging
MFA1A00-E005 Active Fiber Cable 5m 3m IB EDR Up To 100Gb/S 200G QSFP LSZH 3 5
MFA1A00-E005 Active Fiber Cable 5m 3m IB EDR Up To 100Gb/S 200G QSFP LSZH 3 6
MFA1A00-E005 Active Fiber Cable 5m 3m IB EDR Up To 100Gb/S 200G QSFP LSZH 3 7
