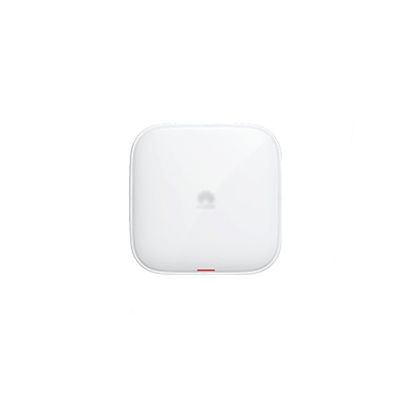

802.11ax 8.35Gbps WiFi 6 AP Access Point Wifi 6 AirEngine 6760-X1 Dual Radio

802.11ax 8.35Gbps WiFi 6 AP Access Point Wifi 6 AirEngine 6760-X1 Dual Radio
802.11ax 8.35Gbps WiFi 6 AP Access Point Wifi 6 AirEngine 6760-X1 Dual Radio 802.11ax 8.35Gbps WiFi 6 AP Access Point Wifi 6 AirEngine 6760-X1 Dual Radio

Large Image :  802.11ax 8.35Gbps WiFi 6 AP Access Point Wifi 6 AirEngine 6760-X1 Dual Radio

Product Details:
Place of Origin: Beijing, China
Brand Name: JYTCH
Payment & Shipping Terms:
Minimum Order Quantity: 2 sets
Price: $100.00 - $480.00/sets
Packaging Details: box
Supply Ability: 1000 Set/Sets per Month
Contact Now

802.11ax 8.35Gbps WiFi 6 AP Access Point Wifi 6 AirEngine 6760-X1 Dual Radio

Description
Products Status: Stock Product Name: Wi-Fi 6 Indoor Access Point AP
Maximum Number Of Users:: ≤ 1152 Radio Protocols:: 802.11a/b/g/n/ac/ac Wave 2/ax
Maximum Rate:: 10.75 Gbit/s Use:: Indoor
Port: Beijing
High Light:

8.35gbps wifi 6 ap

,

802.11ax wifi 6 ap

,

802.11ax wifi access point

AirEngine 6760-X1 Dual-radio 802.11ax 8.35 Gbps Wi-Fi 6 AP with 10.75 Gbps Maximum Rate

Products Description
AirEngine 6760-X1 and AirEngine 6760-X1E — indoor Wi-Fi 6 (802.11ax) Access Points (APs) — support ten spatial streams as the default, with support for up to 12 spatial streams possible through a Right to Use (RTU) software license. In addition, both APs support Software-Defined Radio (SDR) and can flexibly switch between three modes — dual-radio, triple-radio, and dual-radio + one scanning radio — making them ideal for high-interference or high-density access scenarios. Support for 10 GE optical or electrical uplinks offers increased flexibility in terms of deployment, maximizing and protecting customer investment. This make the APs a good fit for small- and medium-sized enterprise office, education, and manufacturing environments. AirEngine 6760-X1 benefits from built-in Smart Antennas — unique to and derived from innovations made in 5G technology — to effectively improve signal gain and enable signals to follow users, achieving high-quality signal coverage with zero blind spots. Alternatively, AirEngine 6760-X1E can be connected to multiple external antennas, to adapt to complex environments, such as narrow corridors and high-rise buildings.
802.11ax 8.35Gbps WiFi 6 AP Access Point Wifi 6 AirEngine 6760-X1 Dual Radio 0
802.11ax 8.35Gbps WiFi 6 AP Access Point Wifi 6 AirEngine 6760-X1 Dual Radio 1

Dynamic Turbo

unique SmartRadio intelligent application acceleration intelligently detects latency-sensitive applications — such as VR,
AR, and gaming services — to ensure that latency remains as low as 10 ms, effectively eliminating dizziness and frame-freezing in
multi-user concurrency scenarios.

Smart Antennas

Unique to , built-in dual-band co-planar Smart Antennas automatically suppress interference, achieve 20% greater coverage
distance than competitor Wi-Fi 6 products, and offer a two-fold increase in overall signal strength. The result is high-quality
wireless coverage with zero blind spots.

IoT Expansion

Both AirEngine 6760-X1 and AirEngine 6760-X1E support BLE 5.0 by default and adapt to multiple IoT protocols, such as RFID and
ZigBee, through the built-in, dual-IoT slot design and USB port. This meets access requirements for a diverse range of Io
T terminals.
Specifications
AirEngine 6760-X1 & 6760-X1E

Dimensions (D x H)
61 mm x 220 mm x 220 mm

Power Input
DC: 48 V ± 10%


PoE power supply: in compliance with IEEE 802.3bt

Maximum Number of Users
≤ 1024 (dual-radio mode)


Note: The actual number of users varies according to the environment.

Port
1 x 10 GE, 1 x GE electrical, and 1 x 10 GE SFP+

IoT
Built-in IoT slots

Operating Temperature
–10°C to 50°C

Radio Protocols
802.11a/b/g/n/ac/ac Wave 2/ax

More Products
802.11ax 8.35Gbps WiFi 6 AP Access Point Wifi 6 AirEngine 6760-X1 Dual Radio 2



NETWOK ROUTER

802.11ax 8.35Gbps WiFi 6 AP Access Point Wifi 6 AirEngine 6760-X1 Dual Radio 3



NETWORK SWITCH

802.11ax 8.35Gbps WiFi 6 AP Access Point Wifi 6 AirEngine 6760-X1 Dual Radio 4



FIREWALL

802.11ax 8.35Gbps WiFi 6 AP Access Point Wifi 6 AirEngine 6760-X1 Dual Radio 5



MODLES

802.11ax 8.35Gbps WiFi 6 AP Access Point Wifi 6 AirEngine 6760-X1 Dual Radio 6



WIERLESS AC

802.11ax 8.35Gbps WiFi 6 AP Access Point Wifi 6 AirEngine 6760-X1 Dual Radio 7



WIERLESS AP

Customer Reviews
802.11ax 8.35Gbps WiFi 6 AP Access Point Wifi 6 AirEngine 6760-X1 Dual Radio 8
Company Profile
802.11ax 8.35Gbps WiFi 6 AP Access Point Wifi 6 AirEngine 6760-X1 Dual Radio 9
Certifications
802.11ax 8.35Gbps WiFi 6 AP Access Point Wifi 6 AirEngine 6760-X1 Dual Radio 10
Product packaging
802.11ax 8.35Gbps WiFi 6 AP Access Point Wifi 6 AirEngine 6760-X1 Dual Radio 11
802.11ax 8.35Gbps WiFi 6 AP Access Point Wifi 6 AirEngine 6760-X1 Dual Radio 12
802.11ax 8.35Gbps WiFi 6 AP Access Point Wifi 6 AirEngine 6760-X1 Dual Radio 13
FAQ
Q1: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.

Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.

Q3: What's the lead time.
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.

Q4: What's your warranty terms?
A: We supply 12 months warranty time.

Q5: What's your payment terms?
A: We receive Escrow, T/T, West Union, Cash and etc
802.11ax 8.35Gbps WiFi 6 AP Access Point Wifi 6 AirEngine 6760-X1 Dual Radio 14
