200Gbs Optic Fiber Cable High Bandwidth Mellanox QSFP56-200G-5M HDR IB

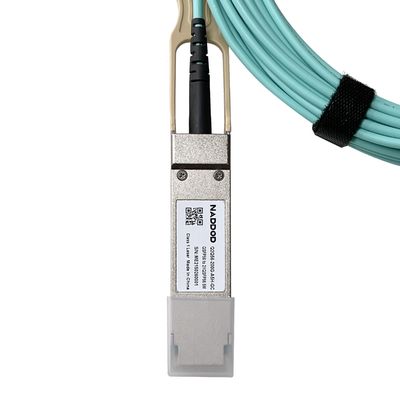

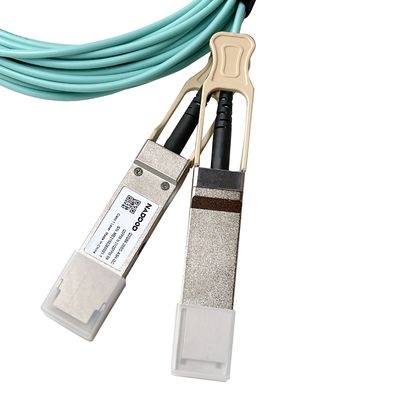

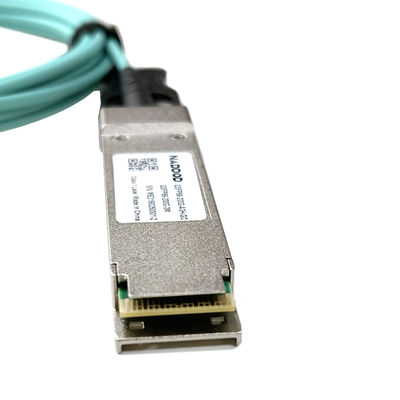

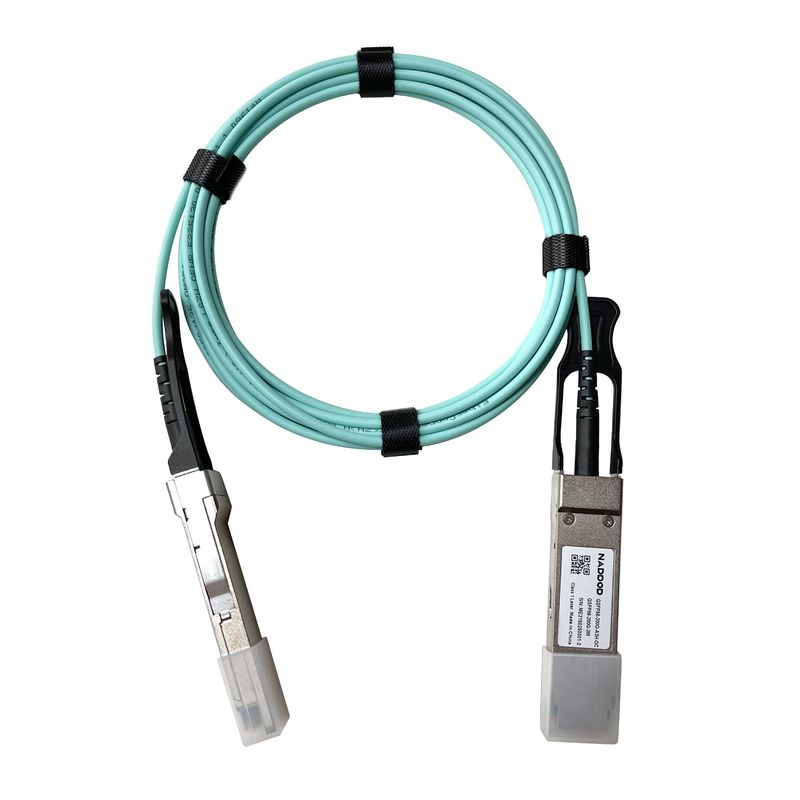

Large Image : 200Gbs Optic Fiber Cable High Bandwidth Mellanox QSFP56-200G-5M HDR IB

Product Details:

Place of Origin:	Beijing, China
Brand Name:	Mellanox
Certification:	ce
Model Number:	QSFP56-200-A5-GC

Payment & Shipping Terms:

Price:	$250.00 - $800.00/sets
Packaging Details:	box
Supply Ability:	10000 Set/Sets per Month

Contact Now

200Gbs Optic Fiber Cable High Bandwidth Mellanox QSFP56-200G-5M HDR IB

Description

Type:	Indoor Fiber Optic Cable, Fiber Optic Patch Cord	Name:	Active Fiber Cable, IB EDR, Up To 100Gb/s, QSFP, LSZH, 5m
Compatibility:	H3C	Single Package:	10X20X20 Cm
Warranty Time:	3 Years	Connector Type:	IB HDR
Port:	Beijing
High Light:	200Gbs Optic Fiber Cable , High Bandwidth Optic Fiber Cable , Mellanox QSFP56-200G-5M HDR IB

Mellanox QSFP56-200G-5M HDR IB 200Gbs Optic Fiber Cable for H3C 3- and High Bandwidth

Products Description

NVIDIA Network MFA1A00-E005 is an active optical cable based on QSFP28 VCSEL (Vertical Cavity Surface Emitting Laser), designed
for use in InfiniBand 100Gb/s EDR systems. 100G EDR AOCs are the most popular interconnects in high-speed InfiniBand
high-performance computing (HPC) environments because they provide predictable latency, very low power (2.2W), and can increase
airflow and tighter power compared to DAC cables. Curved diameter and longer coverage. Since AOC is a thermal plug-in, it is easy
to install and replace.

MFA1A00-Exxx has a standard SFF-8665 qualified QSFP28 port, which faces the electrical port of the host system. It contains four
multi-mode fiber (MMF) optical transceivers, each with a data rate of up to 26Gb/s.

MFA1A00-Exxx provides optional readjustment per lane for its 25-26Gbp/s optical transmitters and receivers, but AOC also supports
lowering the bit rate without readjustment. The transmitter has a programmable input equalizer and input squeeze function, and the
receiver has a programmable output amplitude and pre-stress function.

Up to 100Gb/s data rate
Programmable Rx output amplitude and pre-emphasis
Programmable Tx input equalizer
SFF-8665 qualified QSFP28 port
Single 3.3V power supply
2.2W power dissipation (typ, each terminal is reset)
Up to 100 meters
SFF-8636 conforms to I2C management interface

More Products

Company Profile

Certifications

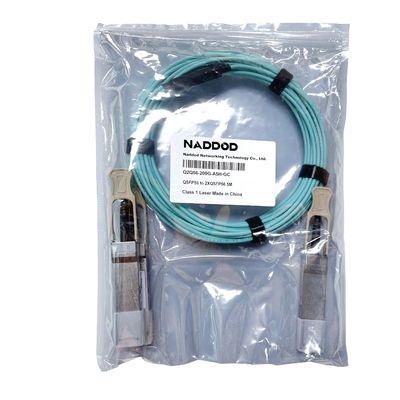

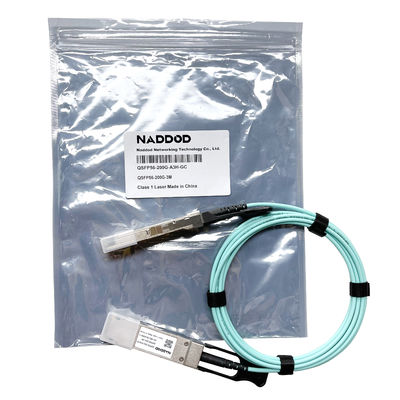

Product packaging

FAQ

Q1: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.

Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.

Q3: What's the lead time.
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.

Q4: What's your warranty terms?
A: We supply 12 months warranty time.

Q5: What's your payment terms?
A: We receive Escrow, T/T, West Union, Cash and etc
