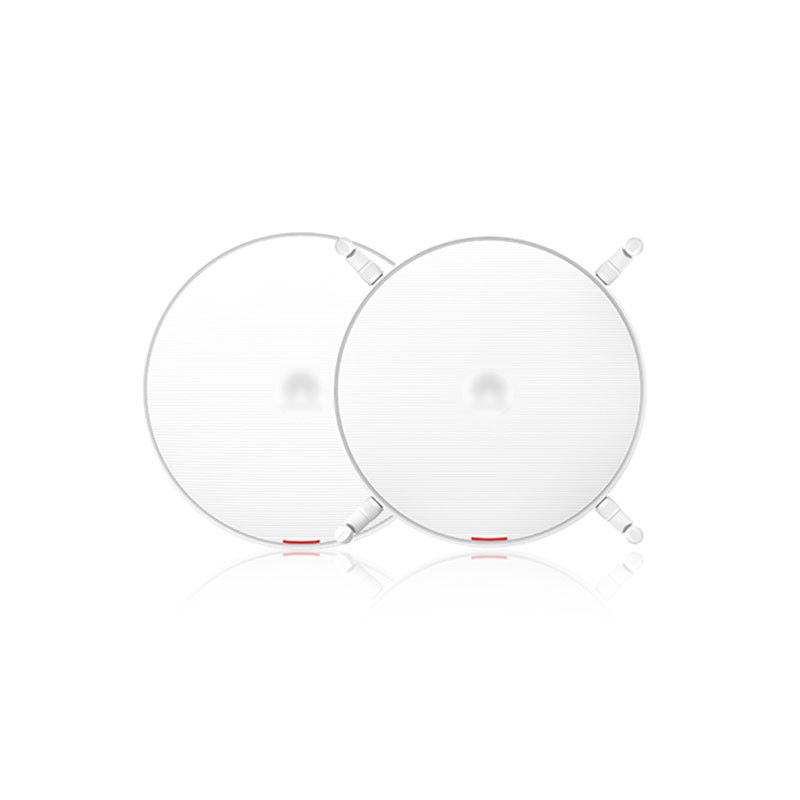

AirEngine 6761-21 WiFi Access Point WiFi 6 Indoor Access Point

AirEngine 6761-21 WiFi Access Point WiFi 6 Indoor Access Point
AirEngine 6761-21 WiFi Access Point WiFi 6 Indoor Access Point

Large Image :  AirEngine 6761-21 WiFi Access Point WiFi 6 Indoor Access Point

Product Details:
Place of Origin: Beijing, China
Brand Name: JYTCH
Payment & Shipping Terms:
Minimum Order Quantity: 2 sets
Price: $200.00 - $250.00/sets
Packaging Details: box
Supply Ability: 1000 Set/Sets per Month
Contact Now

AirEngine 6761-21 WiFi Access Point WiFi 6 Indoor Access Point

Description
Products Status: Stock Model Number:: AirEngine 6761-21
Use:: Intdoor Product Name:: Indoor Wireless Access Point (AP)
Radio Protocols:: 802.11a/b/g/n/ac/ac Wave 2/ax Antenna Type:: Built-in Dynamic-Zoom Smart Antennas
High Light:

AirEngine 6761-21 WiFi Access Point

,

6761-21 WiFi Access Point

,

WiFi 6 Indoor Access Point

802.11a/b/g/n/ac/ac Wave 2/ax Radio Protocols WiFi 6 Indoor Access Point AirEngine 6761-21

Products Description
AirEngine6761-21E(11ax indoor,4+4 dual bands,smart antenna,USB,BLE,Scan)

AirEngine 6761-21 and AirEngine 6761-21E are indoor wireless access points (APs) in compliance of the Wi-Fi 6 (802.11ax) standard. They provide services simultaneously on the 2.4 GHz and 5 GHz frequency bands, achieving a maximum device rate of 3.55 Gbit/s. The AirEngine 6761-21 uses built-in smart antennas to move Wi-Fi signals with users, significantly enhancing users'
wireless network experience. They provide 10GE optical and 2.5GE electrical ports for uplink connections, facilitating flexible deployment and helping save the customer investment. These strengths make the APs ideal for densely populated scenarios such as mobile offices, schools, and stadiums.
Working simultaneously on the 2.4 GHz (4x4) + 5 GHz (4x4) bands, providing a maximum rate
of 1.15 Gbit/s and 2.4 Gbit/s, respectively, and a rate of up to 3.55 Gbit/s for the device 1 x 2.5GE electrical port + 1 x 10GE optical port Independent scanning radio for scanning the air interface without affecting service performance, thereby achieving real-time monitoring and optimization for WLAN network quality Built-in smart antennas of the AirEngine 6761-21 automatically adjust the coverage direction and signal strength based on the intelligent switchover algorithm to adapt to the application environment change, and provide accurate and stable coverage as STAs move. The AirEngine 6761-21E uses different external antennas based on application scenarios to enhance coverage. USB port for external IoT expansion serial interface–based O&M through the built-in module by collaborating with CloudCampus APP; collaboration with a location server to accurately locate terminals and tags Working modes: Fit, Fat, and cloud management.
AirEngine 6761-21 WiFi Access Point WiFi 6 Indoor Access Point 0
Specifications
AirEngine 6761-21 & 6761-21E Access Points
Dimensions (D x H)
Φ220 x 53 mm
Power Input
DC: 43.2–57.6 V

PoE power supply: In compliance with 802.3at
Maximum Number of Users
≤ 1024 (dual-radio mode)

Note: The actual number of users varies according to the environment
Maximum Power Consumption
22 W (excluding USB)

Note: The actual maximum power consumption depends on local laws and regulations
Operating Temperature
–10°C to +50°C
Antenna Type
AirEngine 6761-21: Built-in Dynamic-Zoom Smart Antennas
MIMO:Spatial Streams
2.4 GHz: 4 x 4:4, 5 GHz: 4 x 4:4
Radio Protocols
802.11a/b/g/n/ac/ac wave2/ax
Maximum Rate
3.55 Gbit/s
More Products
AirEngine 6761-21 WiFi Access Point WiFi 6 Indoor Access Point 1



NETWOK ROUTER

AirEngine 6761-21 WiFi Access Point WiFi 6 Indoor Access Point 2



NETWORK SWITCH

AirEngine 6761-21 WiFi Access Point WiFi 6 Indoor Access Point 3



FIREWALL

AirEngine 6761-21 WiFi Access Point WiFi 6 Indoor Access Point 4



MODLES

AirEngine 6761-21 WiFi Access Point WiFi 6 Indoor Access Point 5



WIERLESS AC

AirEngine 6761-21 WiFi Access Point WiFi 6 Indoor Access Point 6



WIERLESS AP

Company Profile
AirEngine 6761-21 WiFi Access Point WiFi 6 Indoor Access Point 7
Certifications
AirEngine 6761-21 WiFi Access Point WiFi 6 Indoor Access Point 8
Product packaging
AirEngine 6761-21 WiFi Access Point WiFi 6 Indoor Access Point 9
AirEngine 6761-21 WiFi Access Point WiFi 6 Indoor Access Point 10
AirEngine 6761-21 WiFi Access Point WiFi 6 Indoor Access Point 11
FAQ
Q1: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.

Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.

Q3: What's the lead time.
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.

Q4: What's your warranty terms?
A: We supply 12 months warranty time.

Q5: What's your payment terms?
A: We receive Escrow, T/T, West Union, Cash and etc
