Product Details:
|
| Private Mold: | Yes | Products Status: | Stock |
|---|---|---|---|
| Product Name: | Wi-Fi 6 802.11ax Access Point AirEngine 5760-10 Access Point | Dimensions (H X W X D): | 47 X 200 X 200 Mm |
| Power Input: | DC: 12 V ± 10% | PoE:: | In Compliance With IEEE 802.3at |
| Antenna Type: | Built-in Smart Antennas | Maximum Number Of Users: | ≤ 512 |
| 2.4G:: | 25 DBm (combined Power) | 5G:: | 25 DBm (combined Power) |
| MIMO: Spatial Streams: | 2.4G: 2 X 2:2 5G: 2 X 2:2 | Radio Protocols: | 802.11a/b/g/n/ac/ac Wave 2/11ax |
| Port: | Beijing | ||
| High Light: | 802.11 Ax Indoor Access Point,Indoor Access Point AirEngine5760-10,AirEngine5760-10 Wireless Router |
||
Affordable AirEngine5760-10 WIFI 802.11 ax Indoor Access Point Board Wireless Router
|
Specifications
|
AirEngine 5760-10
|
|
Dimensions (H x W x D)
|
47 x 200 x 200 mm
|
|
Power Input
|
DC: 12 V ± 10%
|
|
|
PoE: In compliance with IEEE 802.3at
|
|
Maximum Power Consumption
|
15.8 W (excluding output power consumption of the USB interface and IoT)
|
|

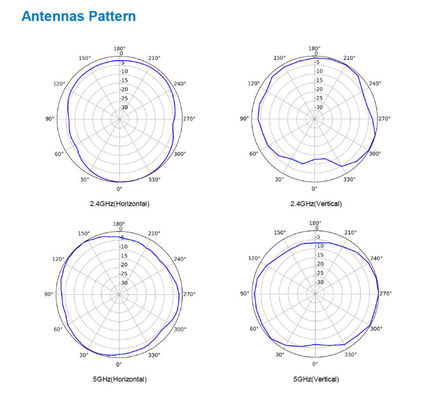

Antenna Type
|
15.8 W (excluding output power consumption of the USB interface and IoT)
|
|
|
Built-in smart antennas
|
|
Maximum Number of Users
|
≤ 512
|
|
|
Note: The actual number of users varies according to the environment.
|
|
Maximum Transmit Power
|
2.4G: 25 dBm (combined power)
|
|
|
5G: 25 dBm (combined power)
|
|
|
Note: The actual transmit power depends on local laws and regulations.
|
|
MIMO: Spatial Streams
|
2.4G: 2 x 2:2 5G: 2 x 2:2
|
|
Radio Protocols
|
802.11a/b/g/n/ac/ac Wave 2/11ax
|
|
Maximum Rate
|
1.774 Gbit/s
|
