2410/100/1000BASE-T 410GE SFP PoE Network Switch with SNMP Function HW S5731-S24P4X

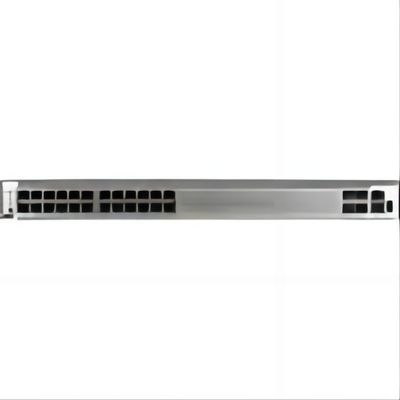

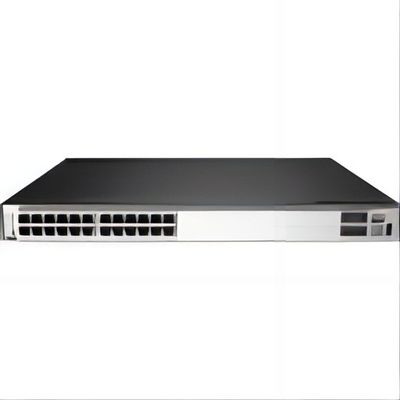

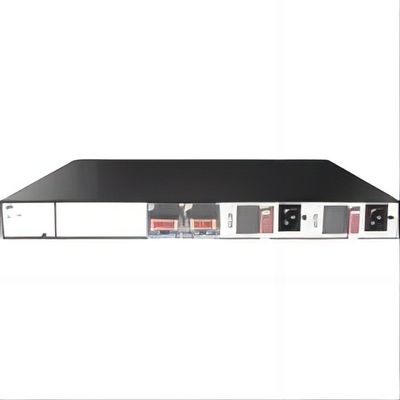

Large Image : 24*10/100/1000BASE-T 4*10GE SFP PoE Network Switch with SNMP Function HW S5731-S24P4X

Product Details:

Place of Origin:	Beijing, China
Brand Name:	jytch
Model Number:	CloudEngine S5731-S24P4X

Payment & Shipping Terms:

Price:	$300.00 - $980.00/sets
Packaging Details:	retail box
Supply Ability:	1000 Set/Sets per Month

Contact Now

2410/100/1000BASE-T 410GE SFP PoE Network Switch with SNMP Function HW S5731-S24P4X

Description

Products Status:	Stock	Ports:	24
Transmission Rate:	10/100/1000Mbps	Function:	LACP, POE, SNMP, Stackable, VLAN Support, LACP, Stackable, VLAN Support
Communication Mode:	Full-Duplex & Half-Duplex	Switch Capacity:	128 Gbps/672 Gbps, 128 Gbps/672 Gbps
Product Name:	CloudEngine S5731-S24P4X S5731-S Series 24 Port Network Switch	Products Status::	Stock
Fixed Ports:	24 X 10/100/1000Base-T Ethernet Ports, 4 X 10 GE SFP+	PoE+:	Not Supported
Forwarding Performance:	96 Mpps	Chassis Height:	1U
Chassis Weight:	8.6kg	Dimensions (W X D X H):	43.6x 442x 420mm
Port:	Beijing

Products Description

CloudEngine S5731-S Series Switches
The CloudEngine S5731-S series offers a range of standard gigabit access switches, with all-GE electrical ports and fixed 10 GE uplink ports.
Built on unified Versatile Routing Platform (VRP), CloudEngine S5731-S switches provide enhanced Layer 3 features,simplified Operations & Maintenance (O&M), Intelligent Stack (iStack) technology — allowing multiple stacking-capable switches to function as a single logical switch — flexible Ethernet networking, and mature Internet Protocol version 6 (IPv6) features.
The series is widely used in a range of scenarios, including enterprise campus access and aggregation, as well as data center access.

CloudEngine S5731-S Series

Product Model	CloudEngine S5731-S24T4X	CloudEngine S5731-S48T4X	CloudEngine S5731-S24P4X	CloudEngine S5731-S48P4X
Forwarding Performance	96 mpps	125 mpps	96 mpps	125 mpps
Switching Capacity2	128/672 Gbit/s	176/672 Gbit/s	128/672 Gbit/s	176/672 Gbit/s
Fixed Ports	24 x 10/100/1000Base-T Ethernet ports, 4 x 10 GE SFP+	48 x 10/100/1000Base-T Ethernet ports, 4 x 10 GE SFP+	24 x 10/100/1000Base-T Ethernet ports, 4 x 10 GE SFP+	48 x 10/100/1000Base-T Ethernet ports, 4 x 10 GE SFP+
PoE+	Not supported	Not supported	supported	supported
MAC Features	64,000 MAC entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses
VLAN Features	4094 VLANs Guest VLAN, voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping
SVF	Plug-and-play SVF client Automatic software and patch loading to clients One-click and automatic delivery of service configurations Independent client operations
VXLAN	VXLAN L2 and L3 gateways Centralized and distributed gateways BGP-EVPN Configured through the NETCONF protocol
Interoperability	VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP) For detailed interoperability certifications and test reports
