Product Details:
|
| Products Status: | Stock | Ports: | 24 |
|---|---|---|---|
| Transmission Rate: | 10/100/1000Mbps | Function: | LACP, Stackable, VLAN Support |
| Communication Mode: | Full-Duplex & Half-Duplex | Switch Capacity: | 128Gbps |

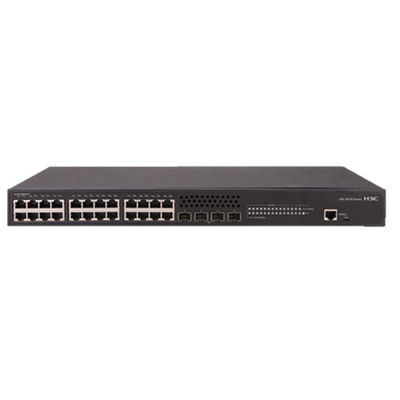

| Product Name: | H3C S5130S-LI Series 10 Gigabit LS-5130S-28S-LI Switch | Switching Capacity: | 128Gbps |
| Packet Forwarding Rate: | 96Mpps | Dimensions (H * W * D): | 43.6 * 440 * 160 Mm |
| Weight: | < 2.5 Kg | Console Ports: | 1 |
| Service Ports: | 24-port 10/100/1000Base-T 4-port SFP+ | Operating Temperature: | 0℃~45℃ |
| Jumbo Frame: | Supported | Stacking: | Intelligent Resilient Framework 2 (IRF2) |
| Port: | Beijing |
Item | S5130S-28S-LI | S5130S-52S-LI | |
Switching capacity | 128Gbps | 176Gbps | |
Packet forwarding rate | 96Mpps | 132Mpps | |
Dimensions (H × W × D) | 43.6 × 440 × 160 mm | 43.6 × 440 × 230 mm | |
Weight | < 2.5 kg | < 3.5 kg | |
Console ports | 1 | ||
Service ports | 24-port 10/100/1000Base-T 4-port SFP+ | 48-port 10/100/1000Base-T 4-port SFP+ | |
Input voltage range | 100 VAC to 240 VAC @ 50 Hz/60 Hz | ||
Power consumption | MIN AC: 10W MAX AC: 24W | MIN AC: 19W MAX AC: 44W | |
Operating temperature | 0ºC to 45ºC | ||
Operating humidity | 10% RH to 90% RH, non-condensing | ||
Stacking | Intelligent Resilient Framework 2 (IRF2) | ||
