Product Details:
|
| Products Status: | Stock | Ports: | 24 |
|---|---|---|---|
| Transmission Rate: | 10/100/1000Mbps | Function: | LACP, SNMP, Stackable, VLAN Support, LACP, Stackable, VLAN Support |
| Communication Mode: | Full-Duplex & Half-Duplex | Switch Capacity: | 672Gbps/6.72Tbps, 672Gbps/6.72Tbps |

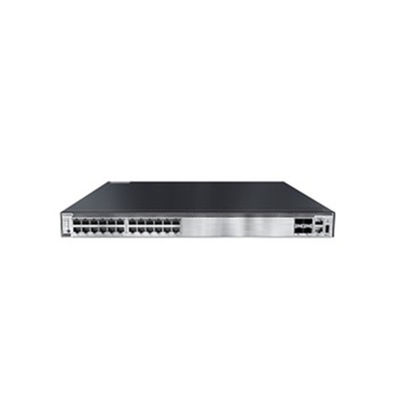

| Product Name: | S5731-S24T4X 24 Port Gigabit Layer 3 Switch With 4 10G SFP+ | Products Status:: | Stock |
| Fixed Ports: | 24 X 10/100/1000Base-T Ethernet Ports, 4 X 10 GE SFP+ | PoE+: | Not Supported |
| Forwarding Performance: | 96 Mpps | Chassis Height: | 1U |
| Chassis Weight: | 8.4kg | Dimensions (W X D X H): | 43.6x 442x 420mm |
| Port: | Beijing |
Product Model | CloudEngine S5731-S24T4X | CloudEngine S5731-S48T4X | CloudEngine S5731-S24P4X | CloudEngine S5731-S48P4X | |||
Forwarding Performance | 96 mpps | 125 mpps | 96 mpps | 125 mpps | |||
Switching Capacity2 | 128/672 Gbit/s | 176/672 Gbit/s | 128/672 Gbit/s | 176/672 Gbit/s | |||
Fixed Ports | 24 x 10/100/1000Base-T Ethernet ports, 4 x 10 GE SFP+ | 48 x 10/100/1000Base-T Ethernet ports, 4 x 10 GE SFP+ | 24 x 10/100/1000Base-T Ethernet ports, 4 x 10 GE SFP+ | 48 x 10/100/1000Base-T Ethernet ports, 4 x 10 GE SFP+ | |||
PoE+ | Not supported | Not supported | supported | supported | |||
MAC Features | 64,000 MAC entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses | ||||||
VLAN Features | 4094 VLANs Guest VLAN, voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping | ||||||
SVF | Plug-and-play SVF client Automatic software and patch loading to clients One-click and automatic delivery of service configurations Independent client operations | ||||||
VXLAN | VXLAN L2 and L3 gateways Centralized and distributed gateways BGP-EVPN Configured through the NETCONF protocol | ||||||
Interoperability | VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP) For detailed interoperability certifications and test reports | ||||||
