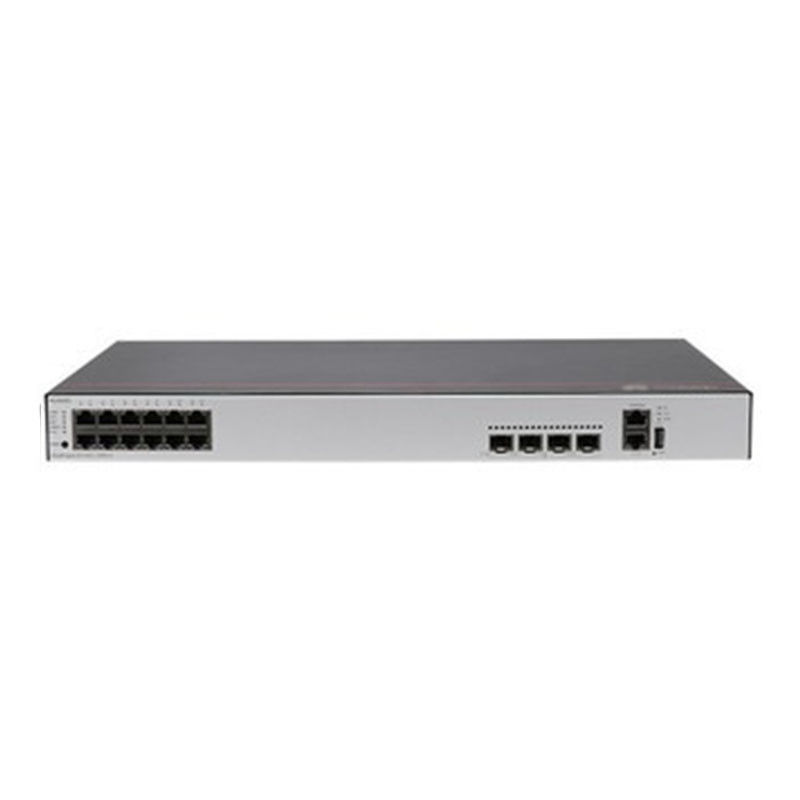

CloudEngine Managed Switch S5735S-L Series Network Switch with 1U Chassis Height

Large Image : CloudEngine Managed Switch S5735S-L Series Network Switch with 1U Chassis Height

Product Details:

Place of Origin:	Beijing, China
Brand Name:	OEM
Model Number:	S5735s-l12p4s-a

Payment & Shipping Terms:

Minimum Order Quantity:	2 sets
Price:	$50.00 - $70.00/sets
Packaging Details:	box
Supply Ability:	10000 Set/Sets per Month

Contact Now

CloudEngine Managed Switch S5735S-L Series Network Switch with 1U Chassis Height

Description

Products Status:	Stock	Ports:	12
Transmission Rate:	10/100/1000Mbps	Function:	LACP, SNMP, Stackable, VLAN Support
Communication Mode:	Full-Duplex & Half-Duplex	Switch Capacity:	32 Gbit/s/336 Gbit/s, 32 Gbit/s/336 Gbit/s
Product Name:	Switch 12 Port Gigabit 4GE SFP Layer2 POE Switch S5735S-L12P4S-A	Products Status::	Stock
Chassis Height:	1U	Forwarding Performance::	24 Mpps
Dimensions::	442mmx220mmx43.6mm	Port:	Beijing

Products Description

CloudEngine S5735-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports.
CloudEngine S5735-L series switches are designed for scenarios such as enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.

CloudEngine S5731-L Series

Product Model	CloudEngine S5735-L12T4S-A CloudEngine S5735-L12P4S-A	CloudEngine S5735-L24T4S-A CloudEngine S5735-L24P4S-A	CloudEngine S5735-L24T4X-A CloudEngine S5735-L24T4X-D CloudEngine S5735-L24P4X-A	CloudEngine S5735-L48T4S-A	CloudEngine S5735-L48T4X-A CloudEngine S5735-L48P4X-A	CloudEngine S5735-L32ST4X-A CloudEngine S5735-L32ST4X-D
Forwarding Performance	24 Mpps	42 Mpps	96 Mpps	78 Mpps	132 Mpps	108 Mpps
Switching Capacity2	32 Gbps/336 Gbps	56 Gbps/336 Gbps	128 Gbps/336 Gbps	104 Gbps/432 Gbps	176 Gbps/432 Gbps	144 Gbps/432 Gbps
Fixed Ports	12 x 10/100/1000Base-T ports, 4 x GE SFP ports	24 x 10/100/1000Base-T ports, 4 x GE SFP ports	24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports	48 x 10/100/1000BASE-T ports, 4 x GE SFP ports	48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports	24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports
PoE+	CloudEngine S5735-L12P4S-A: Supported CloudEngine S5735-L24P4S-A: Supported CloudEngine S5735-L24P4X-A: Supported CloudEngine S5735-L48P4X-A: Supported Other: Not support						supported	Not supported	supported	Not supported
MAC Features	MAC address auto-learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses Interface-based MAC address learning limiting
VLAN Features	4094 VLANs Guest VLAN, Voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping
IP Routing	Static route, RIP, RIPng, OSPF, OSPFv3
Super Virtual Fabric (SVF)	Plug-and-play SVF clients Automatic software package and patch loading to SVF clients One-click and automatic delivery of service configurations Independent SVF client operations
Interoperability	VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP)
