Competitive Black S5732-H48UM2CC Multi-Rate Three-Layer Core Switch 1U Chassis Height

Name: Competitive Black S5732-H48UM2CC Multi-Rate Three-Layer Core Switch 1U Chassis Height
Brand: OEM
SKU: S5732-H48UM2CC
Price: 500.00 USD
Availability: InStock
Rating: 4.9 (141 reviews)

All Products

POE Network Switch
(170)

Gigabit Network Switch
(51)

Wireless Access Point
(17)

WiFi Access Point
(20)

Network Adapter Card
(16)

Transceiver Module
(14)

Hardware Firewall
(16)

Enterprise Server
(17)

GPU Card
(10)

Enterprise SSD
(9)

Active Optical Cable
(16)

I'm Online Chat Now

Competitive Black S5732-H48UM2CC Multi-Rate Three-Layer Core Switch 1U Chassis Height

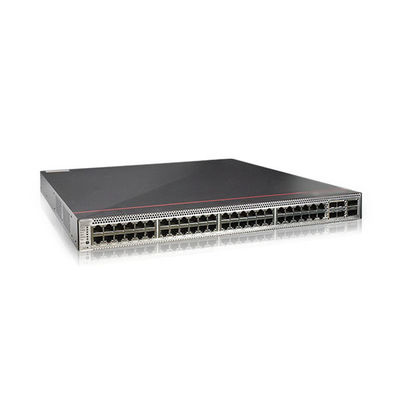

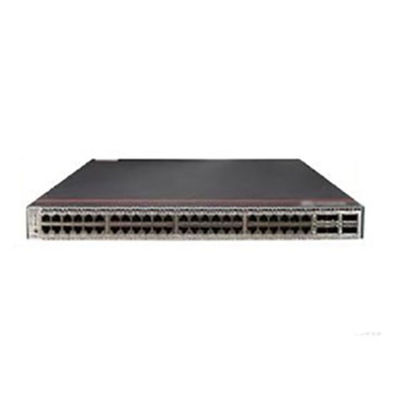

Large Image : Competitive Black S5732-H48UM2CC Multi-Rate Three-Layer Core Switch 1U Chassis Height

Product Details:

Place of Origin:	Beijing, China
Brand Name:	OEM
Model Number:	S5732-H48UM2CC

Payment & Shipping Terms:

Minimum Order Quantity:	2 sets
Price:	$500.00 - $1,000.00/sets
Packaging Details:	box
Supply Ability:	10000 Set/Sets per Month

Contact Now

Competitive Black S5732-H48UM2CC Multi-Rate Three-Layer Core Switch 1U Chassis Height

Description

Products Status:	Stock	Ports:	≥ 48
Transmission Rate:	10/100/1000Mbps	Function:	LACP, SNMP, Stackable, VLAN Support
Communication Mode:	Full-Duplex & Half-Duplex	Switch Capacity:	1.76 Tbit/s/2.4 Tbit/s, 1.76 Tbit/s/2.4 Tbit/s
Product Name:	CloudEngine S5732-H Series Switches S5732-H48UM2CC	Products Status::	Stock
Chassis Height:	1U	Forwarding Performance:	490 Mpps
Color:	Black Or Any	Fixed Ports:	24 X 100M/1G/2.5G/5G/10G Base-T Ethernet Ports
PoE++:	Supported	Condition::	100% Original Brand
Extended Slots:	Supports 2 X 25 GE SFP28 Or 8 X 10 GE SFP+, 8 X 25 GE SFP28 Cards	Port:	Beijing

Products Description

CloudEngine S5732-H Series Multi-GE Switches
Next generation CloudEngine S5732-H Series Multi-GE Switches offers either 24 or 48 downlink ports — up to 10 GE — alongside four 25 GE uplink ports and either two 40 GE or two 100 GE uplink ports. With this feature set, CloudEngine S5732-H is designed for connecting to Wireless Local Area Network (WLAN) APs in the Wi-Fi 6 era.Based on unified Versatile Routing Platform (VRP), the switches boast a range of Intent-Driven Network (IDN) features, including an integrated wireless Access Controller (AC) that can manage up to 1024 wireless Access Points (APs), and a freemobility feature that offers a consistently high-quality user experience.

S5732-H48UM2CC quick spec
48 1000M/2.5GE/5GE/10GE BASE-T ports
4 GE/10GE/25GE SFP+ optical ports
2 40GE/100GE QSFP+ optical ports
Forwarding performance is 1320 MPPS
Switching capacity is 2.4 Tbps/24 Tbps
PoE++

CloudEngine S5732-H Series

Parameters	CloudEngine S5732-H24UM2CC	CloudEngine S5732-H48UM2CC
Forwarding Performance	490 mpps	490 mpps
Switching Capacity2	1.28 Tbit/s/2.4 Tbit/s	1.76 Tbit/s/2.4 Tbit/s
Fixed Ports	24 x 100M/1G/2.5G/5G/10G Base-T Ethernet ports, 4 x 25 GE SFP28 + 2 x 40 GE QSFP+ or 2 x 100 GE QSFP28	48 x 100M/1G/2.5G/5G/10G Base-T Ethernet ports, 4 x 25 GE SFP28 + 2 x 40 GE QSFP+ or 2 x 100 GE QSFP28
PoE++	Supported	Supported
Extended Slots	One extended slot, supports 2 x 25 GE SFP28 or 8 x 10 GE SFP+, 8 x 25 GE SFP28 cards
Wireless Services	Management of up to 1024 APs AP access control, AP domain management, and AP configuration template management Radio channel management, unified static configuration, and dynamic centralized management WLAN basic services, QoS, security, and user management CAPWAP, tag/terminal location, and spectrum analysis
iPCA	Collection of real-time statistics on the number of lost packets and packet loss ratio at network and device levels
Super Virtual Fabric (SVF)	Functions as the parent node to virtualize downstream switches and APs vertically as one device for simpler management Supports a two-layer client architecture Supports third-party devices between SVF parent and clients
VXLAN	VXLAN L2 and L3 gateways Centralized and distributed gateways BGP-EVPN Configured through the NETCONF protocol
Interoperability	VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP)

Customer Reviews

More Products

Company Profile

Certifications

Product packaging

FAQ

Q1: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.

Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.

Q3: What's the lead time.
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.

Q4: What's your warranty terms?
A: We supply 12 months warranty time.

Q5: What's your payment terms?
A: We receive Escrow, T/T, West Union, Cash and etc
