Product Details:
|
| Products Status: | Stock | Ports: | 24 |
|---|---|---|---|
| Transmission Rate: | 10/100/1000Mbps | Function: | LACP, Stackable, VLAN Support |
| Communication Mode: | Full-Duplex & Half-Duplex | Switch Capacity: | 336 Gbit/s |

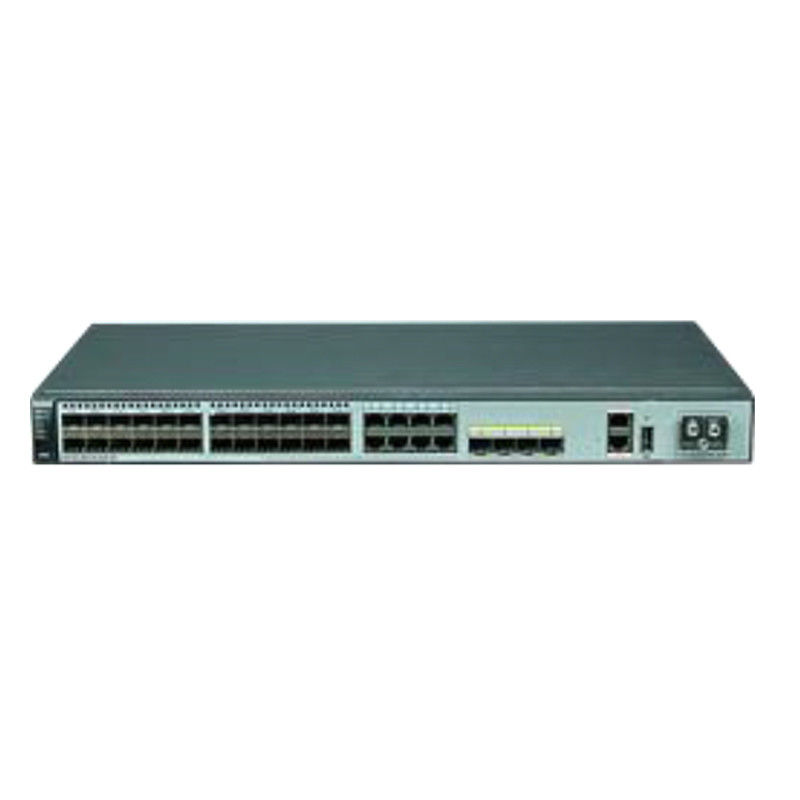

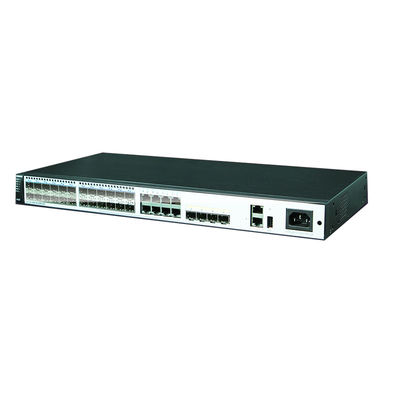

| Product Name: | S5720-SI Series Standard Gigabit Ethernet Switch S5721-28X-SI-24S-AC | Switching Capacity: | 336 Gbit/s |
| Forwarding Performance: | 108Mpps/126Mpps | Fixed Port: | 24 *10/100/1,000 Ports, |
| Chassis Height: | 1U | Dimensions (W * D * H): | 442*420*44.4cm |
| Memory (RAM): | 2g | Flash: | 240 MB |
| Extended Slot: | 1 | COLOR: | Black |
| Port: | Beijing | ||
| High Light: | gigabit ethernet switch stackable,2g ram gigabit ethernet switch,stackable gigabit ethernet network switch |
||
|
Product model
|
S5720-28P-SI-AC
|
S5720-28X-SI-AC(DC)
S5720-28X-PWR-SI-AC(DC) |
S5720-28X-SI-24S-AC(DC)
S5721-28X-SI-24S-AC |
S5720-52P-SI-AC
S5720S-52P-SI-AC |
|||
|
Switching Capacity
|
336 Gbit/s
|
|
|
|
|||
|
Forwarding Performance
|
42 Mpps
|
96 Mpps
|
96 Mpps
|
78 Mpps
|
|||
|
Fixed Ports
|
24 x 10/100/1,000 ports, 4 of which are dual-purpose 10/100/1,000 or SFP, 4 Gig SFP
|
24 x 10/100/1,000 ports, 4 of which are dual-purpose 10/100/1,000 or SFP, 4 x 10 Gig SFP+
|
24 x Gig SFP 8 of which are dual-purpose 10/100/1,000 or SFP, 4 x 10 Gig SFP+
|
48 x 10/100/1,000 ports, 4 Gig SFP
|
|||
|
MAC Address Table
|
16K IEEE 802.1d compliance
16k MAC address entries MAC address learning and aging Static, dynamic, and black hole MAC address entries Packet filtering based on source MAC addresses |
|
|
|
|||
|
VLAN Features
|
4094 VLANs
Guest VLAN, Voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping |
|
|
|
|||
|
IP Routing
|
Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+
|
|
|
|
|||
|
SVF
|
Plug-and-play SVF client
Automatic software and patch loading to clients One-click and automatic delivery of service configurations Independent client running |
|
|
|
|||
|
Interoperability
|
VLAN-based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST) Link-type Negotiation Protocol (LNP) (similar to DTP)
VLAN Central Management Protocol (VCMP) (similar to VTP) |
|
|
|
|||
|
Product model
|
S5720-52X-SI-AC(DC)
S5720-52X-PWR-SI-AC(DC) S5720-52X-PWR-SI-ACF S5720-52X-SI-48S S5720S-52X-SI-AC |
S5720S-28P-SI-AC
S5720S-28X-SI-AC |
|
|
Switching Capacity
|
336 Gbit/s
|
|
|
|
Forwarding Performance
|
132 Mpps
|
P model:42 Mpps
X model:96 Mpps |
|
|
Fixed Ports
|
S5720-52X-SI-48S: 48 x Gig SFP, 2 of which are dual-purpose 10/100/1,000 or SFP, 4 x 10 Gig SFP+
Others: 48 x 10/100/1,000 ports, 4 x 10 Gig SFP+ |
P model:
24 x 10/100/1,000 ports, 4 x Gig SFP X model: 24 x 10/100/1,000 ports, 4 x 10 Gig SFP+ |
|
|
MAC Address Table
|
16K IEEE 802.1d compliance
16k MAC address entries MAC address learning and aging Static, dynamic, and black hole MAC address entries Packet filtering based on source MAC addresses |
|
|
|
VLAN Features
|
4094 VLANs
Guest VLAN, Voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping |
|
|
|
IP Routing
|
Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+
|
|
|
|
SVF
|
Plug-and-play SVF client
Automatic software and patch loading to clients One-click and automatic delivery of service configurations Independent client running |
|
|
|
Interoperability
|
VLAN-based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST) Link-type Negotiation Protocol (LNP) (similar to DTP)
VLAN Central Management Protocol (VCMP) (similar to VTP) |
|
|
