Product Details:
|
| Products Status: | Stock | Ports: | 24 |
|---|---|---|---|
| Transmission Rate: | 10/100/1000Mbps | Function: | LACP, Stackable, VLAN Support |
| Communication Mode: | Full-Duplex & Half-Duplex | Switch Capacity: | 598 Gbit/s |

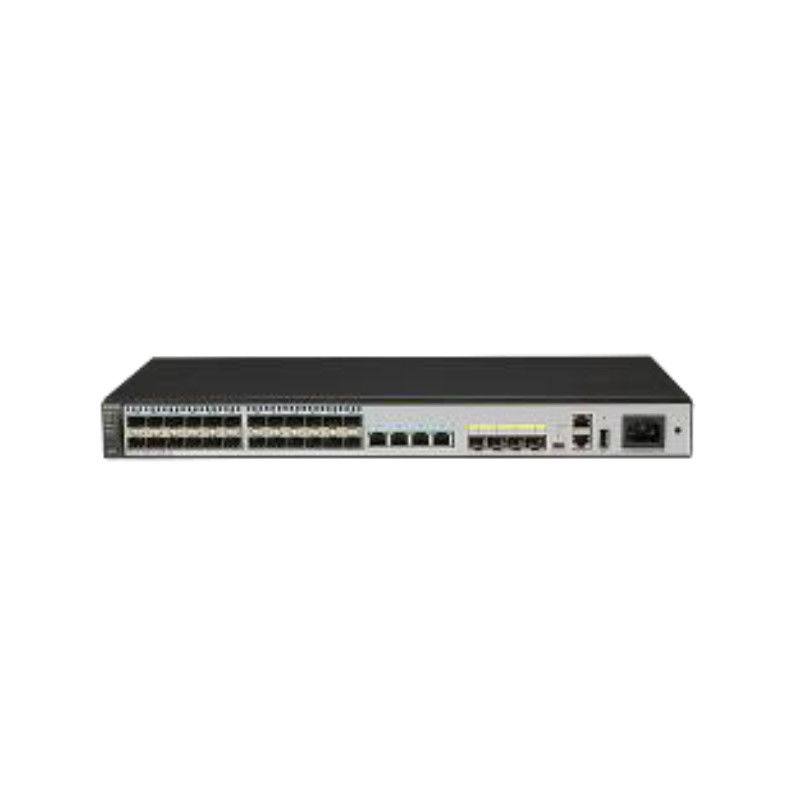

| Product Name: | 5720-EI Series 24 Port Gig SFP Network Switch S5720-32X-EI-24S-DC | Switching Capacity: | 598 Gbit/s |
| Forwarding Performance: | 102Mpps | Dimensions (W X D X H): | 442mm*220mm*43.6mm |
| Fixed Port: | 24*10/100/1000Base-T Ports | Chassis Height: | 1U |
| Max Power Consumption: | 50.7w | Typical Power Consumption: | 39.75w |
| Brand: | Oem | Power Supply: | AC Power |
| Port: | Beijing | ||
| High Light: | sfp network switch 102mpps,5720-ei series sfp network switch,102mpps sfp switch |
||
|

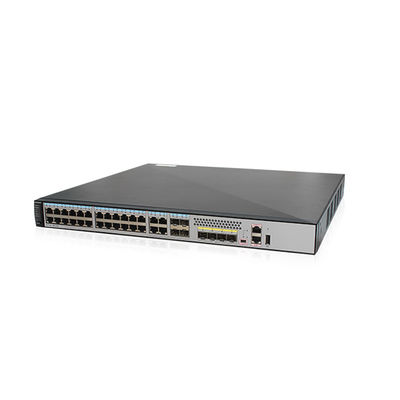

Product Model
|
S5720-32X-EI-AC
S5720-32X-EI-24S-AC
S5720-32X-EI-24S-DC
|
S5720-50X-EI-AC
S5720-50X-EI-DC
|
S5720-50X-EI-46S-AC
S5720-50X-EI-46S-DC
|
5720-52X-EI-AC
|
|||
|
Forwarding Performance
|
102 Mpps
|
129 Mpps
|
129 Mpps
|
132 Mpps
|
|||
|
Extended Slots
|
N/A
|
|
|
|
|||
|
MAC Address Table
|
64k MAC address entries
MAC address learning and aging Static, dynamic, and black hole MAC address entries Packet filtering based on source MAC addresses |
|
|
|
|||
|
VLAN Features
|
4,094 VLANs
Guest VLAN, Voice VLAN GVRP MUX VLAN VLAN assignment based on 4,094 VLANs Guest VLAN and voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping VLAN-based transparent transmission of protocol packets MAC addresses, protocols, IP subnets, policies, and ports VLAN mapping |
|
|
|
|||
|
IP Routing
|
Static routes, RIPv1/v2, and RIPng
OSPF, OSPFv3, IS-IS, and IS-ISv6 BGP, BGP4+, ECMP, and routing policy |
|
|
|
|||
|
Interoperability
|
VLAN-Based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST)
Link-type Negotiation Protocol (LNP) (similar to DTP) VLAN Central Management Protocol (VCMP) (similar to VTP) |
|
|
|
|||
