Product Details:
|
| Products Status: | Stock | Ports: | 48 |
|---|---|---|---|
| Transmission Rate: | 10/100/1000Mbps | Function: | LACP, SNMP, Stackable, VLAN Support, LACP, Stackable, VLAN Support |
| Communication Mode: | Full-Duplex & Half-Duplex | Switch Capacity: | 758Gbps/7.58Tbps, 758Gbps/7.58Tbps |

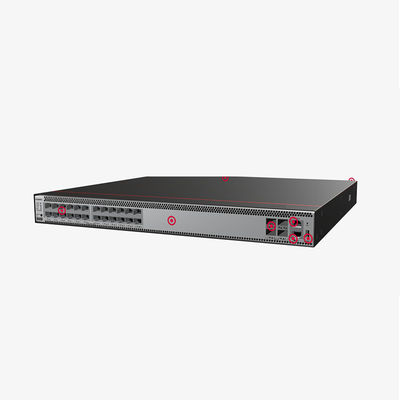

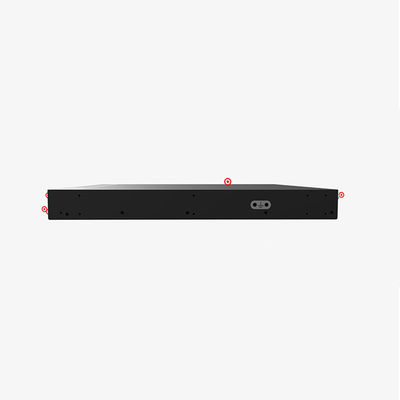

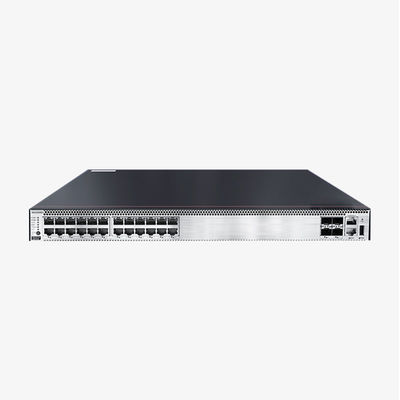

| Product Name: | CloudEngine S5731S-H24T4X-A Gigabit Network Ethernet Campus Switch | Products Status:: | Stock |
| Forwarding Performance: | 108/216Mpps | Memory (RAM): | 2 GB |
| Flash: | 340 MB | Transmission Rate:: | 10/100/1000Mbps |
| Power Supply: | AC Power Supply | Stack: | Supported |
| Port: | Beijing |
|
CloudEngine S5731S-H Series
|
|
|
|
|
|
|
||||||
|
Modle
|
CloudEngine S5731S-H24T4XC-A
|
CloudEngine S5731S-H24T4X-A
|
CloudEngine S5731S-H24T4S-A
|
CloudEngine S5731S-H48T4XC-A
|
CloudEngine S5731S-H48T4X-A
|
CloudEngine S5731S-H48T4S-A
|
||||||
|
Switching Capacity2
|
228/426Mpps
|
108/126Mpps
|
96/126Mpps
|
264/462Mpps
|
144/166Mpps
|
132/166Mpps
|
||||||
|
Switching Capacity2
|
758Gbps/7.58Tbps
|
758Gbps/7.58Tbps
|
758Gbps/7.58Tbps
|
758Gbps/7.58Tbps
|
758Gbps/7.58Tbps
|
758Gbps/7.58Tbps
|
||||||
|
Fixed Ports
|
24 × 10/100/1000Base-T Ethernet ports, 4 × 10 Gig SFP+
|
24 × 10/100/1000Base-T Ethernet ports, 4 × 10 Gig SFP+
|
24 × 10/100/1000Base-T Ethernet ports, 4 Gig SFP+
|
48 × 10/100/1000Base-T Ethernet ports, 4 × 10 Gig SFP+
|
48 × 10/100/1000Base-T Ethernet ports, 4 × 10 Gig SFP+
|
48 × 10/100/1000Base-T Ethernet ports, 4 Gig SFP+
|
||||||
|

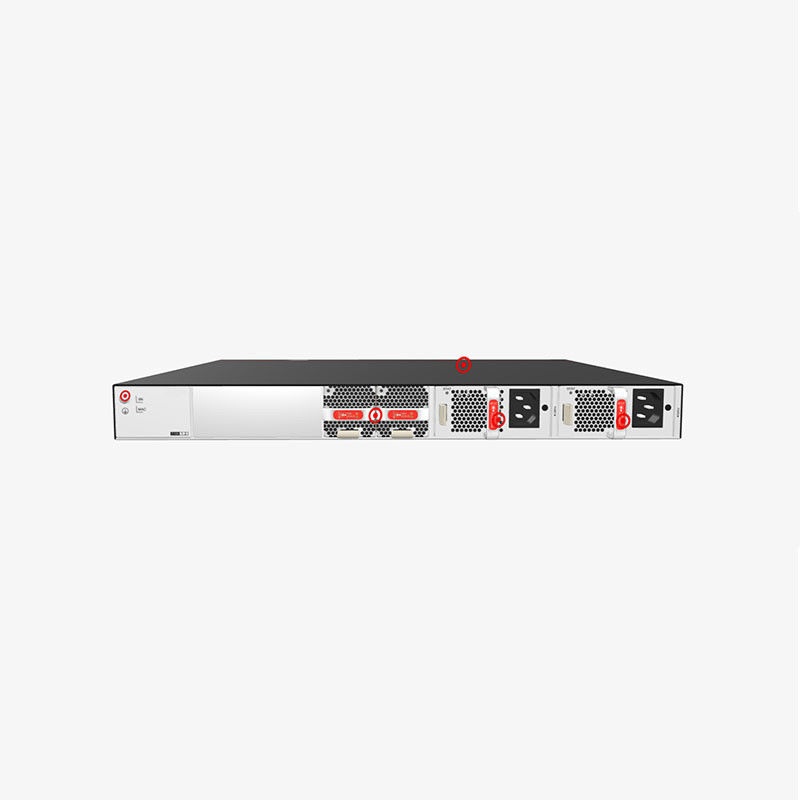

Power module
|
1+1 backup, with 1 150W AC power module by default
|
1+1 backup, with 1 150W AC power module by default
|
1+1 backup, with 1 150W AC power module by default
|
1+1 backup, with 1 150W AC power module by default
|
1+1 backup, with 1 150W AC power module by default
|
1+1 backup, with 1 150W AC power module by default
|
||||||
|
Extended Slots
|
1 expansion slot
|
NA
|
NA
|
1 expansion slot
|
NA
|
NA
|
||||||
|
Wireless Services
|
Management of up to 1024 APs
AP access control, AP domain management, and AP configuration template management Radio channel management, unified static configuration, and dynamic centralized management WLAN basic services, QoS, security, and user management CAPWAP, tag/terminal location, and spectrum analysis |
|
|
|
|
|
||||||
|
iPCA
|
Collection of real-time statistics on the number of lost packets and packet loss ratio at network and device levels
|
|
|
|
|
|
||||||
|
VXLAN
|
VXLAN L2 and L3 gateways
Centralized and distributed gateways BGP-EVPN Configured through the NETCONF protocol |
|
|
|
|
|
||||||
|
Interoperability
|
BST (compatible with PVST, PVST+, and RPVST)
LNP (similar to DTP)
VCMP (similar to VTP)
|
|
|
|
|
|
||||||
|
