S5731S-S48T4X-A 48 Gigabit Ethernet Ports 4 x 10 Gig SFP Switch with 672Gbps Capacity

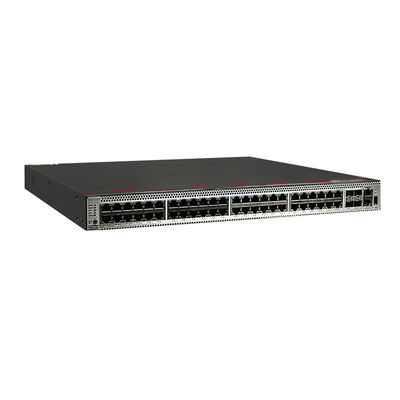

Large Image : S5731S-S48T4X-A 48 Gigabit Ethernet Ports 4 x 10 Gig SFP Switch with 672Gbps Capacity

Product Details:

Place of Origin:	Beijing, China
Brand Name:	OEM
Model Number:	S5731S-S48T4X-A

Payment & Shipping Terms:

Price:	$200.00 - $1,500.00/sets
Packaging Details:	box
Supply Ability:	10000 Set/Sets per Month

Contact Now

S5731S-S48T4X-A 48 Gigabit Ethernet Ports 4 x 10 Gig SFP Switch with 672Gbps Capacity

Description

Products Status:	Stock	Ports:	≥ 48
Transmission Rate:	10/100/1000Mbps	Function:	LACP, SNMP, Stackable, VLAN Support, LACP, Stackable, VLAN Support
Communication Mode:	Full-Duplex & Half-Duplex	Switch Capacity:	672Gbps/6.72Tbps, 672Gbps/6.72Tbps
Product Name:	S5731S-S48T4X-A 48 Gigabit Ethernet Ports 4 X 10 Gig SFP+ Switch	Products Status::	Stock
Fixed Ports:	48 X 10/100/1000Base-T Ethernet Ports, 4 X 10 GE SFP+	PoE+:	Not Supported
Forwarding Performance:	144/166Mpps	Chassis Height:	1U
Full Configuration Weight:	9.5kg	Dimensions (W X D X H):	442x 420x 43.6mm
Port:	Beijing

Products Description

CloudEngine S5731S-S Series Switches
CloudEngine S5731S-S series switches are standard gigabit access switches tailored for the channel distribution market, with all-GE electrical downlink ports and fixed 10 GE uplink ports. CloudEngine S5731S-S series switches are next-generation gigabit access switches. unified Versatile Routing Platform (VRP), CloudEngine S5731S-S switches provide enhanced Layer 3 features, simple O&M, Intelligent Stack (iStack), flexible Ethernet networking, and mature IPv6 features. These feature-rich switches are widely used in scenarios such as enterprise campus access and aggregation, as well as data center access.

CloudEngine S5731S-S Series

Product Model	CloudEngine S5731S-S24T4X-A	CloudEngine S5731S-S24P4X-A	CloudEngine S5731S-S48T4X-A	CloudEngine S5731S-S48P4X-A
Packet forwarding rate	108/126Mpps	108/126Mpps	144/166Mpps	144/166Mpps
Switching Capacity2	672Gbps/6.72Tbps	672Gbps/6.72Tbps	672Gbps/6.72Tbps	672Gbps/6.72Tbps
Fixed Ports	24 x 10/100/1000Base-T Ethernet ports, 4 x 10 GE SFP+	24 x 10/100/1000Base-T Ethernet ports, 4 x 10 GE SFP+	48 x 10/100/1000Base-T Ethernet ports, 4 x 10 GE SFP+	48 x 10/100/1000Base-T Ethernet ports, 4 x 10 GE SFP+
PoE+	Not supported	supported	Not supported	supported
Power module	1+1 backup, with 1 150W AC power module by default	1+1 backup, with 1 1000W AC power module by default	1+1 backup, with 1 150W AC power module by default	1+1 backup, with 1 1000W AC power module by default
MAC Features	32,000 MAC entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses
VLAN Features	4094 VLANs Guest VLAN, voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping
SVF	Plug-and-play SVF client Automatic software and patch loading to clients One-click and automatic delivery of service configurations Independent client operations
Interoperability	VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP) For detailed interoperability certifications and test reports

More Products

Company Profile

Certifications

Product packaging

FAQ

Q1: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.

Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.

Q3: What's the lead time.
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.

Q4: What's your warranty terms?
A: We supply 12 months warranty time.

Q5: What's your payment terms?
A: We receive Escrow, T/T, West Union, Cash and etc
