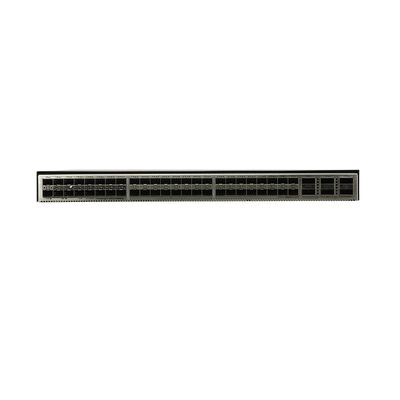

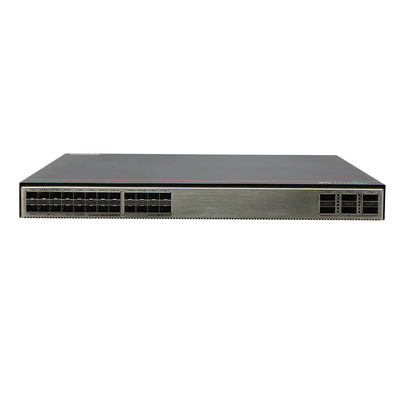

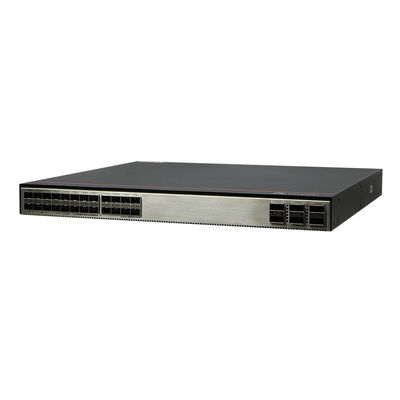

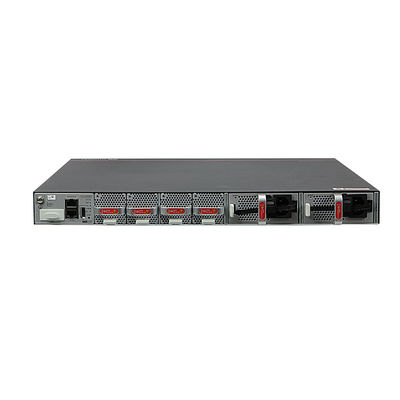

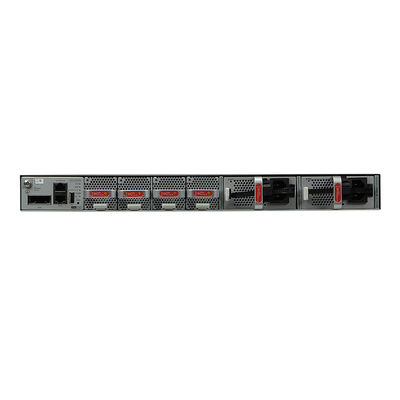

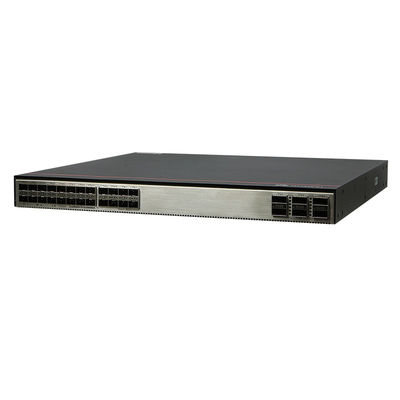

CloudEngine S5732-H Series 24-port Network Switch with 450 mpps Forwarding Performance

Large Image : CloudEngine S5732-H Series 24-port Network Switch with 450 mpps Forwarding Performance

Product Details:

Place of Origin:	Beijing, China
Brand Name:	OEM
Model Number:	S5732-H24S6Q

Payment & Shipping Terms:

Price:	$500.00 - $1,500.00/sets
Packaging Details:	box
Supply Ability:	10000 Set/Sets per Month

Contact Now

CloudEngine S5732-H Series 24-port Network Switch with 450 mpps Forwarding Performance

Description

Products Status:	Stock	Ports:	24
Transmission Rate:	10/100/1000Mbps	Function:	LACP, SNMP, Stackable, VLAN Support
Communication Mode:	Full-Duplex & Half-Duplex	Switch Capacity:	600 Gbit/s/2.4 Tbit/s, 600 Gbit/s/2.4 Tbit/s
Product Name:	S5732-H24S6Q 24port Network Switch CloudEngine S5732-H Series Switches	Products Status::	Stock
Chassis Height:	1U	Forwarding Performance:	450 Mpps
Color:	Black Or Any	Fixed Ports:	20 X GE SFP Ports, 4 X 10 GE SFP+ Ports, 6 X 40 GE QSFP+ Ports
PoE++:	Supported	Condition::	100% Original Brand
Modle:	S5732-H24S6Q	Port:	Beijing

Products Description

CloudEngine S5732-H Series Multi-GE Switches
Next generation CloudEngine S5732-H Series Multi-GE Switches offers either 24 or 48 downlink ports — up to 10 GE — alongside four 25 GE uplink ports and either two 40 GE or two 100 GE uplink ports. With this feature set, CloudEngine S5732-H is designed for connecting to Wireless Local Area Network (WLAN) APs in the Wi-Fi 6 era.Based unified Versatile Routing Platform (VRP), the switches boast a range of Intent-Driven Network (IDN) features, including an integrated wireless Access Controller (AC) that can manage up to 1024 wireless Access Points (APs), and a freemobility feature that offers a consistently high-quality user experience.

Wired and Wireless Convergence

Managing up to 1024 wireless APs with converged wireless and wired policy management, to avoid the forwarding performance
bottleneck of standalone WLAN ACs.

Intelligent Network O&M

Collect device data in real-time through telemetry and collaborate with the campus network analyzer, CampusInsight, to quickly
detect network problems affecting user experience.

Integrated Security Capabilities

Secure operations with built-in security probes, which precisely identify potential malicious traffic and collaborate with the
HiSec Insight to achieve network-wide collaborative security protection.

CloudEngine S5732-H Series

Product Model	CloudEngine S5732-H24S6Q	CloudEngine S5732-H48S6Q
Forwarding Performance	450 mpps	450 mpps
Switching Capacity2	600 Gbit/s/2.4 Tbit/s1.28 Tbit/s/2.4 Tbit/s	648 Gbit/s/2.4 Tbit/s
Fixed Ports	20 x GE SFP ports, 4 x 10 GE SFP+ ports, 6 x 40 GE QSFP+ ports	44 x GE SFP ports, 4 x 10 GE SFP+ ports, 6 x 40 GE QSFP+ ports
Wireless Services	Management of up to 1024 APs AP access control, AP domain management, and AP configuration template management Radio channel management, unified static configuration, and dynamic centralized management WLAN basic services, QoS, security, and user management CAPWAP, tag/terminal location, and spectrum analysis
iPCA	Collection of real-time statistics on the number of lost packets and packet loss ratio at network and device level
Super Virtual Fabric (SVF)	Functions as the parent node to virtualize downstream switches and APs vertically as one device for simpler management Supports a two-layer client architecture Supports third-party devices between SVF parent and clients
VXLAN	VXLAN L2 and L3 gateways Centralized and distributed gateways BGP-EVPN Configured through the NETCONF protocol
Security	Encrypted Communication Analytics (ECA) Threat trap technology Network-wide security collaboration
Interoperability	VBST (compatible with PVST, PVST+, and RPVST) LNP (similar to DTP) VCMP (similar to VTP)
