Product Details:
|
| Products Status: | Stock | Ports: | 16 |
|---|---|---|---|
| Transmission Rate: | 10/100/1000Mbps | Function: | LACP, Stackable, VLAN Support |
| Communication Mode: | Full-Duplex & Half-Duplex | Switch Capacity: | 2.56Tbps/23.04Tbps |

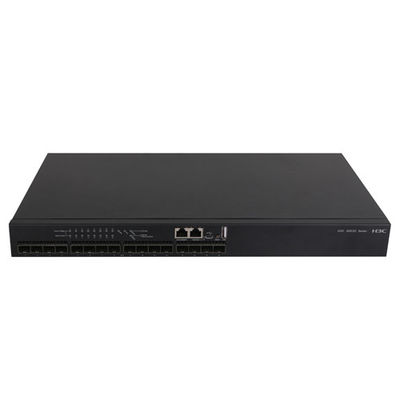

| Product Name: | H3C S6520-16S-SI L3 Ethernet Switch Host, Supports 16 1G/10G | Dimensions (w * D * H) (mm): | 440*260*43.6 |
| Full Weight: | ≤7kg | Console Port: | 1 Piece |
| Ethernet Port For Management: | 1 Piece | USB Port: | 1 Piece |
| Front Panel Service Port Description: | 16 1/10G SFP Plus Ports | Working Temperature: | 0°C~45°C |
| Packet Forwarding Rate: | 240Mpps | Wire-speed Switching: | 2.56Tbps/23.04Tbps |
| Port: | Beijing |
project | S6520-16S-SI | S6520-24S-SI | S6520-22SG-SI | S6520-30SG-SI | S6520-26Q-SI | ||
Dimensions (width × depth × height) | 440×260×43.6 | 440×260×43.6 | 440×260×43.6 | 440×260×43.6 | 440×360×43.6 | ||
Full weight | ≤7kg | ≤7kg | ≤6kg | ≤6kg | ≤7kg | ||
Console port | 1 piece | ||||||
Ethernet port for management | 1 piece | ||||||
USB port | 1 piece | ||||||
Front panel service port description | 16 1/10G SFP Plus ports | 24 1/10G SFP Plus ports | 8 GE+14 1/10G SFP Plus ports | 8 GE+14 1/22G SFP Plus ports | 24 1/10G SFP Plus ports+2 QSFP Plus ports | ||
Input voltage communicate with | Rated voltage range: 100V~240V, 50/60Hz | ||||||
Direct current | Rated voltage range: -48V~-60V | ||||||
Power consumption (static) | AC: 15W AD: 15W | AC: 17W AD: 16W | AC: 15W AD:NO | AC: 15W AD: NO | AC single: 15W double ：18W AD single: 15W double：18W | ||
