Product Details:
|
| Products Status: | Stock | Ports: | 24 |
|---|---|---|---|
| Transmission Rate: | 10/100/1000Mbps | Function: | LACP, Stackable, VLAN Support |
| Communication Mode: | Full-Duplex & Half-Duplex | Switch Capacity: | 128Gbps |

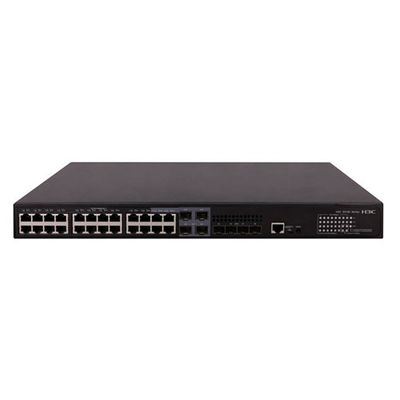

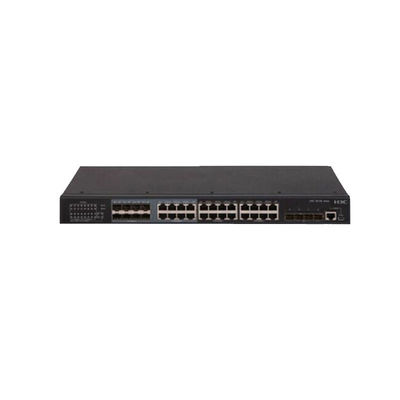

| Product Name: | H3C LS-S5130S-28S-HPWR-EI Ethernet Switch 24-port Gigabit POE Switch | Port Switching Capacity: | 128Gbps |
| Box Switching Capacity: | 336Gbps | Forwarding Capacity: | 96Mpps |
| Dimensions (W * D * H): | 440*460*43.6 | Weight: | ≤8.5kg |
| MTBF(Year): | 89.35 | Feature: | S5130S-28C-PWR-HI |
| Flash/SDRAM: | 256MB/512MB | Port: | Beijing |
Supporting features | S5130S-12TP-HPWR-EI | S5130S-28S-HPWR-EI | S5130S-52P-PWR-EI | ||
Switching capacity (full duplex) | 336Gbps/3.36Tbps | ||||
Packet forwarding rate (Whole machine) | 27Mpps/102Mpps | 108Mpps/126Mpps | 87Mpps/166Mpps | ||
Dimensions (W × D × H) (Unit: mm) | 330×230 ×43.6 | 440×260×43.6 | 440×400 ×43.6 | ||
Weight | ≤3kg | ≤4.5kg | ≤6kg | ||
Management port | 1 Console port | ||||
Service port description | 8 10/100 / 1000Base-T adaptive Ethernet port 4 gigabit SFP ports (two combo ports) | 24 10/100 / 1000Base-T adaptive Ethernet port 4 Gigabit SFP ports (combo port) | 48 10/100/1000 Base-T adaptive Ethernet port 4 Gigabit SFP ports | ||
POE | Both PWR and HPWR models support 802.3at / POE + power supply standards | ||||
