Product Details:
|
| Products Status: | Stock | Ports: | 24 |
|---|---|---|---|
| Transmission Rate: | 10/100/1000Mbps | Function: | LACP, Stackable, VLAN Support |
| Communication Mode: | Full-Duplex & Half-Duplex | Switch Capacity: | 128Gbps |

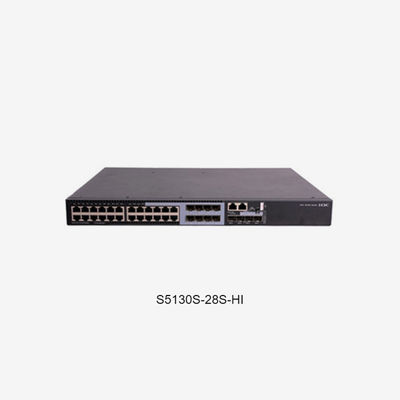

| Product Name: | S5130S-HI Serries High Performance Ethernet Switch S5130S-28S-HI | Port Switching Capacity: | 128Gbps |
| Box Switching Capacity: | 336Gbps | Forwarding Capacity: | 96Mpps |
| Dimensions (W * D * H): | 440*360*43.6 | Weight: | ≤6kg |
| Front Panel Data Ports: | 24 X 10/100/1000BASE-T Ethernet Ports | MTBF(Year): | 174.61 |
| Jumbo Frame: | Supported | Feature: | S5130S-28S-HI |
| Port: | Beijing |
Feature | S5130S-28S-HI | S5130S-52S-HI | S5130S-28S-PWR-HI | S5130S-52S-PWR-HI | |||
Port Switching capacity | 128Gbps | 176Gbps | 128Gbps | 176Gbps | |||
Box Switching capacity | 336Gbps | ||||||
Forwarding capacity | 96Mpps | 132Mpps | 96Mpps | 132Mpps | |||
Dimensions (W × D × H) | 440×360×43.6 | 440×360×43.6 | 440×460×43.6 | 440×460×43.6 | |||
Weight | ≤6kg | ≤6.5kg | ≤8.5kg | ≤9.5kg | |||
Front panel data ports | 24 x 10/100/1000BASE-T Ethernet ports, (including 8 combo ports), 4 x 10G/1G BASE-X SFP+ ports | 48 x 10/100/1000BASE-T Ethernet ports, 4 x 10G/1G BASE-X SFP+ ports | 24 x 10/100/1000BASE-T Ethernet ports, (including 4 combo ports), 4 x 10G/1G BASE-X SFP+ ports | 48 x 10/100/1000BASE-T Ethernet ports, 4 x 10G/1G BASE-X SFP+ ports | |||
Console port | 1 × RJ-45 console port 1 × Micro-USB console port Only the Micro-USB console port is available when you connect both ports. | ||||||
MTBF(Year) | 174.61 | 151.28 | 89.35 | 61.87 | |||
Feature | S5130S-28C-HI | S5130S-52C-HI | S5130S-28C-PWR-HI | S5130S-52C-PWR-HI | |||
Port Switching capacity | 128Gbps | 176Gbps | 128Gbps | 176Gbps | |||
