442.0mm * 310.0mm * 43.6mm S5700 Series Switch for Full-Duplex Half-Duplex Communication

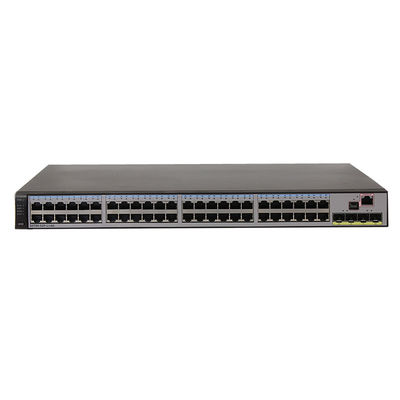

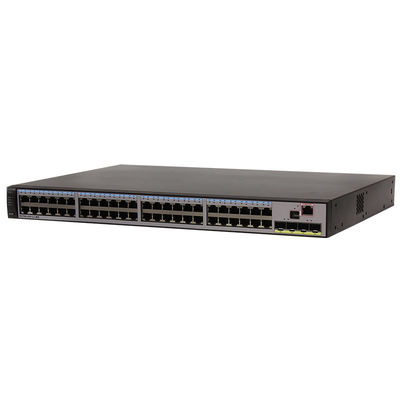

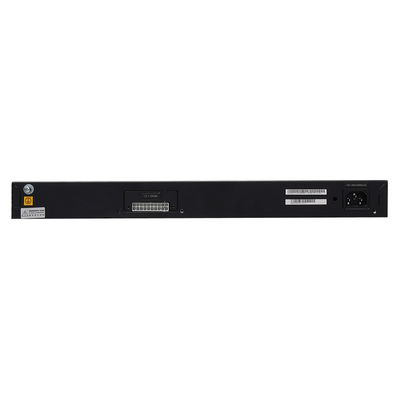

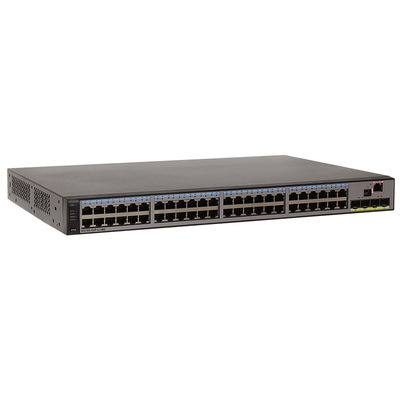

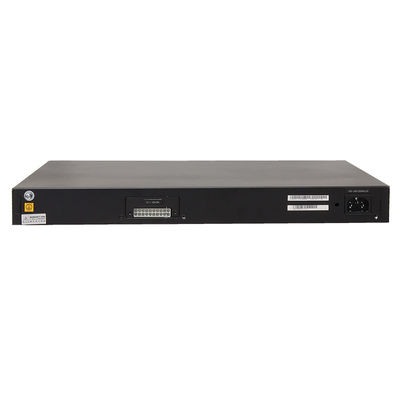

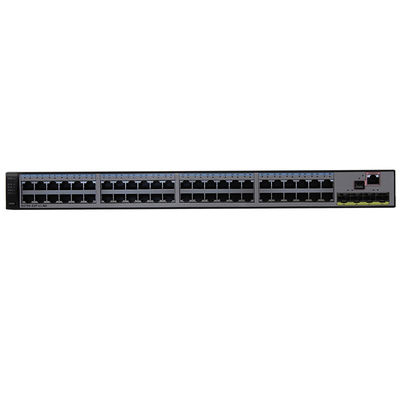

Large Image : 442.0mm * 310.0mm * 43.6mm S5700 Series Switch for Full-Duplex Half-Duplex Communication

Product Details:

Place of Origin:	Beijing, China
Brand Name:	OEM
Model Number:	S5700-52P-LI-AC

Payment & Shipping Terms:

Minimum Order Quantity:	2 sets
Price:	$300.00 - $500.00/sets
Packaging Details:	box
Supply Ability:	10000 Set/Sets per Month

Contact Now

442.0mm * 310.0mm * 43.6mm S5700 Series Switch for Full-Duplex Half-Duplex Communication

Description

Private Mold:	NO	Products Status:	Stock
Ports:	≥ 48	Transmission Rate:	10/100/1000Mbps
Function:	LACP, POE, Stackable, VLAN Support	Communication Mode:	Full-Duplex & Half-Duplex
Switch Capacity:	336 Gbit/s	Product Name:	Original HW S5700-52P-LI-AC S5700 Series Switch
Downlink Ports:	48 X 10/100/1000 Base-T Ethernet Ports	Uplink Ports:	4 X GE SFP Ports
MAC Address:	16K	VLAN:	4K
Forwarding Performance:	78 Mpps	Switching Capacity:	256 Gbit/s
Stack:	Supported	Memory (RAM):	256 MB
Dimensions (W X D X H):	442.0mm * 310.0mm * 43.6mm	Port:	Beijing

Products Description

S5700-LI Series Simplified Gigabit Switches

Super-flexible, easy-to-manage platform that lets you optimize L3 switching capacity and downstream port bandwidth from 100 Mbit/s to 1 Gbit/s.
S5700-LI Series Switches support Advanced Hibernation Management (AHM) for dynamic power management, iStack clustering for easy scalability, and comprehensive security and user authentication features. Additional options include battery backup, CSFP interfaces, and zero-touch remote maintenance, as well as models customized to meet specialized requirements.
Ideal for use as an access or aggregation switch in a campus network, or to provide Gigabit access in an Internet data center. S5700-10P-LI-AC switch supports 8 x 10/100/1,000 Base-T Ethernet ports, 2 x GE SFP ports and can be powered by AC power supply. It’s one of the S5700-LI Series Simplified Gigabit Switches.

Product Code	S5700-52P-LI-AC
Downlink Ports	48 x 10/100/1000 Base-T Ethernet Ports
Uplink Ports	4 x GE SFP Ports
MAC Address	16K
VLAN	4K
Forwarding Performance	78 Mpps
Stack	Supported
Stack Ports	-V200R001: the last two uplink 1000Base-X optical ports -V200R002 and later versions: four uplink 1000Base-X optical ports
Power	AC 110/220 V & RPS1800 redundant power supply

More Products

NETWOK ROUTER

NETWORK SWITCH

FIREWALL

MODLES

WIERLESS AC

WIERLESS AP

Company Profile

Certifications

Product packaging

FAQ

Q1: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.

Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.

Q3: What's the lead time.
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.

Q4: What's your warranty terms?
A: We supply 12 months warranty time.

Q5: What's your payment terms?
A: We receive Escrow, T/T, West Union, Cash and etc
