Product Details:
|
| Products Status: | Stock | Ports: | 24 |
|---|---|---|---|
| Transmission Rate: | 10/100/1000Mbps | Function: | LACP, Stackable, VLAN Support |
| Communication Mode: | Full-Duplex & Half-Duplex | Switch Capacity: | 128Gbps |

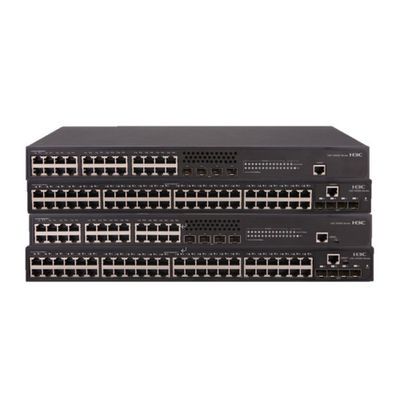

| Product Name: | H3C LS-5560S-28S-SI 24 Gigabit Electrical Ports Network Switch | Switching Capacity: | 128Gbps |
| Packet Forwarding Rate: | 96Mpps | Operating Temperature: | 0°C To 45°C (32°F To 113°F) |
| Dimensions (H * W * D): | 43.6 * 440 * 160 Mm | Weight: | < 2.5 Kg |
| Management Ethernet Ports: | 1 Console Port | SDRAM/Flash: | 512MB/256MB |
| Maximum Stacking Num: | 9 | Service Ports: | 24 * 10/100/1000Base-T |
| Port: | Beijing |
Item | S5560S-28P-SI | S5560S-52P-SI | S5560S-28S-SI | S5560S-52S-SI | |||
Switching capacity | 56Gbps | 104Gbps | 128Gbps | 176Gbps | |||
Packet forwarding rate | 42Mpps | 78Mpps | 96Mpps | 132Mpps | |||
Dimensions (H × W × D) | 43.6 × 440 × 160 mm | 43.6 × 440 × 230 mm | 43.6 × 440 × 160 mm | 43.6 × 440 × 230 mm | |||
Weight | < 2.5 kg | < 3.5 kg | < 2.5 kg | < 3.5 kg | |||
Management Ethernet ports | 1 console port | ||||||
SDRAM/Flash | 512MB/256MB | ||||||
Maximum stacking num | 9 | ||||||
Stacking bandwidth | 16Gbps | 80Gbps | |||||
Service ports | 24 × 10/100/1000Base-T autosensing Ethernet ports 4 × SFP ports | 48 × 10/100/1000Base-T autosensing Ethernet ports 4 × SFP ports | 24 × 10/100/1000Base-T autosensing Ethernet ports 4 × 10G SFP+ ports | 48× 10/100/1000Base-T autosensing Ethernet ports 4 × 10G SFP+ ports | |||
Power consumption | MIN: AC 9W MAX: AC 23W | MIN: AC 18W MAX: AC 41W | MIN: AC 10W MAX: AC 24W | MIN: AC 19W MAX: AC 44W | |||
Operating temperature | 0ºC to 45ºC (32°F to 113°F) | ||||||
Operating humidity | 10% RH to 90% RH, non-condensing | ||||||
Link aggregation | 1G/10G port aggregation Static aggregation Dynamic aggregation Multichassis link aggregation | ||||||
