48 Port Ethernet Switch Gigabit Port Switch for S5735-S48T4X The Ultimate Networking Tool

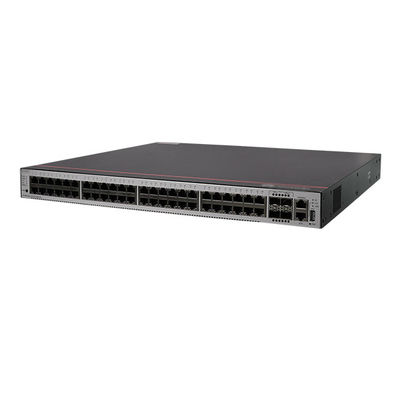

Large Image : 48 Port Ethernet Switch Gigabit Port Switch for S5735-S48T4X The Ultimate Networking Tool

Product Details:

Place of Origin:	Beijing, China
Brand Name:	OEM
Model Number:	S5735-S48T4X

Payment & Shipping Terms:

Minimum Order Quantity:	2 sets
Price:	$200.00 - $500.00/sets
Packaging Details:	box
Supply Ability:	10000 Set/Sets per Month

Contact Now

48 Port Ethernet Switch Gigabit Port Switch for S5735-S48T4X The Ultimate Networking Tool

Description

Products Status:	Stock	Ports:	≥ 48
Transmission Rate:	10/100/1000Mbps	Function:	LACP, SNMP, Stackable, VLAN Support, LACP, Stackable, VLAN Support
Communication Mode:	Full-Duplex & Half-Duplex	Switch Capacity:	176Gbps/432Gbps, 176Gbps/432Gbps
Product Name:	Manage Network Switch For S5735-S48T4X With 48 Port Ethernet Switch	Products Status::	Stock
Chassis Height:	1U	Fixed Ports:	48 X 10/100/1000BASE-T Ports, 4 X 10 GE SFP+ Ports
Color:	Black Or Any	IP Routing:	Static Route, RIP, RIPng, OSPF, OSPFv3
Condition::	100% Original Brand	Forwarding Performance::	78 Mpps
Port:	Beijing

Products Description

CloudEngine S5735-S Series Switches
CloudEngine S5735-S is a series of standard gigabit access switches that provide 24–48 flexible all-GE downlink ports and four fixed 10 GE uplink ports.
S5735-S switches are designed for scenarios such as enterprise campus network access and aggregation, as well as data center access. Built on next-generation, high-performance hardware and with the Versatile Routing Platform (VRP), CloudEngine S5735-S switches boast advanced features, such as enhanced Layer 3 functionality, simplified O&M, flexible Ethernet networking, and mature IPv6 capabilities.

CloudEngine S5735-S48T4X

 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports

 1+1 power supply backup  Forwarding performance: 78 Mpps

 Switching capacity:176 Gbps/432Gbps

CloudEngine S5731-S Series

Product Model	CloudEngine S5735-S24T4X	CloudEngine S5735-S24P4X	CloudEngine S5735-S32ST4X	CloudEngine S5735-S48T4X	CloudEngine S5735-S48P4X	CloudEngine S5735-S48S4X
Forwarding Performance	96 Mpps	96 Mpps	96 Mpps	78 Mpps	132 Mpps	132 Mpps
Switching Capacity2	128Gbps/336 Gbps	128Gbps/336 Gbps	144 Gbps/432 Gbps	176 Gbps/432 Gbps	176 Gbps/432 Gbps	176 Gbps/432 Gbps
Fixed Ports	24 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports	24 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports	24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports	48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports	48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports	48 x GE SFP ports, 4 x 10 GE SFP+ ports
PoE+	Not supported	supported	Not supported	Not supported	supported	Not supported
MAC Features	IEEE 802.1d compliance MAC address auto-learning and aging Static, dynamic, and black hole MAC address entries Packet filtering based on source MAC addresses
VLAN Features	4094 VLANs Guest VLAN, Voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping
IP Routing	Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+
Super Virtual Fabric (SVF)	Plug-and-play SVF clients Automatic software package and patch loading to SVF clients One-click and automatic delivery of service configurations Independent SVF client operation
Interoperability	VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP)
