H3C S10506X 18000Mpps Data Center Network Switch Host With MPU Console Ports

Large Image : H3C S10506X 18000Mpps Data Center Network Switch Host With MPU Console Ports

Product Details:

Place of Origin:	Beijing, China
Brand Name:	OEM
Certification:	CE, RoHS, Other
Model Number:	H3C S10506X

Payment & Shipping Terms:

Price:	$100.00 - $500.00/sets
Packaging Details:	box
Supply Ability:	10000 Set/Sets per Month

Contact Now

H3C S10506X 18000Mpps Data Center Network Switch Host With MPU Console Ports

Description

Products Status:	Stock	Ports:	≤ 8
Transmission Rate:	10/100/1000Mbps	Function:	LACP, Stackable, VLAN Support
Communication Mode:	Full-Duplex & Half-Duplex	Switch Capacity:	60Tbps
Product Name:	H3C S10506X Series Data Center Network Ethernet Switch Host S10506X	Switching Capacity:	60Tbps
Forwarding Capacity:	18000Mpps	MPU Slots:	2
MPU Name:	LSUM1MPUS06XEC0	MPU Processor:	1.8GHz 4 Cores
MPU Flash /SDRAM:	Flash 2GB SDRAM 8GB	MPU Console Ports:	1x RJ-45 1x USB Console
MPU MGMT Ports:	2x 10/100/1000M RJ-45 2x 1000M SFP	MPU USB Port:	1
Port:	Beijing
High Light:	18000mpps data center network switch , h3c l3 network switch , h3c data center network switch

H3C S10506X 18000Mpps Data Center Network Ethernet Switch Host with MPU Console Ports

Products Description

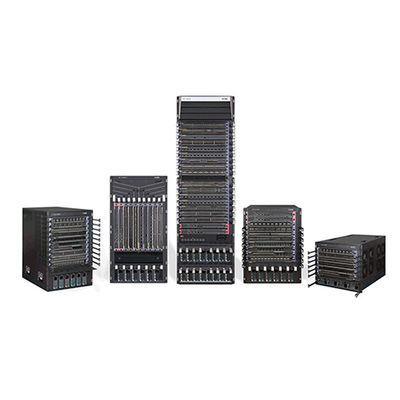

H3C S10500X series switch is designed for the core layer of data centers and next-generation campus networks as well as the
distribution layer of MANs. It provides the following features:
Advanced CLOS multistage and multi-plane switching architecture, delivering great bandwidth scalability.
A wide range of data center features, including TRansparent Interconnection of Lots of Links (TRILL), Ethernet Virtual Interconnect (EVI), Multitenant Device Context (MDC), Edge Virtual Bridging (EVB), and Fibre Channel over Ethernet (FCoE).
Fully compliant with 40GE and 100GE Ethernet standards.
H3C's state-of-the-art Comware V7 operating system.
Virtualization software system based on the Intelligent Resilient Framework 2 (IRF2).
Comprehensive network services, including MPLS VPN, IPv6, application security, application optimization, and BRAS services.
A variety of HA features, such as Non-Stop Forwarding (NSF), In-Service Software Upgrade (ISSU), Graceful Restart (GR), and ring protection. These features improve operation efficiency, maximize service time, and reduce TCO.
Compliant with RoHS and environment-friendly.

Features	S10506X
Switching capacity	60Tbps
Forwarding capacity	18000Mpps
MPU slots	2
MPU Name	LSUM1MPUS06XEC0
MPU Processor	1.8GHz 4 cores
MPU Flash /SDRAM	Flash 2GB SDRAM 8GB
MPU Console Ports	1x RJ-45 1x USB console
MPU MGMT Ports	2x 10/100/1000M RJ-45 2x 1000M SFP
