S5560X-30F-EI L3 Ethernet Switch 24SFP 8GE Combo 4SFP Plus 1Slot No Power Supply

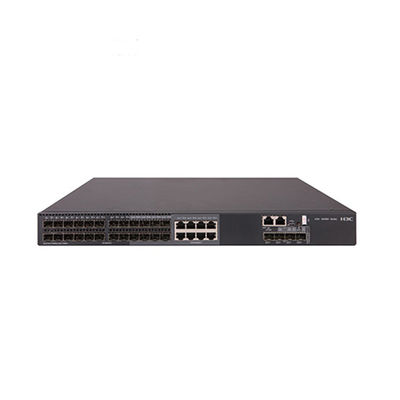

Large Image : S5560X-30F-EI L3 Ethernet Switch 24SFP 8GE Combo 4SFP Plus 1Slot No Power Supply

Product Details:

Place of Origin:	Beijing, China
Brand Name:	OEM
Certification:	CE, RoHS, Other
Model Number:	H3C S5560X-30F-EI

Payment & Shipping Terms:

Price:	$1,200.00 - $1,400.00/sets
Packaging Details:	box
Supply Ability:	10000 Set/Sets per Month

Contact Now

S5560X-30F-EI L3 Ethernet Switch 24SFP 8GE Combo 4SFP Plus 1Slot No Power Supply

Description

Products Status:	Stock	Ports:	24
Transmission Rate:	10/100/1000Mbps	Function:	LACP, Stackable, VLAN Support
Communication Mode:	Full-Duplex & Half-Duplex	Switch Capacity:	598Gbps/5.98Tbps
Product Name:	S5560X-30F-EI 24 Gigabit Optical Ports 4 10 Gigabit Layer 3 Switches	Port Switching Capacity:	288Gbps
Box Switching Capacity:	598Gbps/5.98Tbps	Packet Forwarding Rate:	216 Mpps
Dimensions (H * W * D):	43.6 * 440 360 Mm (1.72 17.32 * 14.17 In)	Weight:	≤ 6.6 Kg (14.55 Lb)
Flash/SDRAM:	512MB/2GB	Management Ethernet Ports:	1
Expansion Slots:	1	Stacking Bandwidth:	Maximum 160Gbps
Port:	Beijing
High Light:	s5560x-30f-ei l3 ethernet switch , l3 ethernet switch 24sfp 8ge , s5560x-30f-ei ethernet network switch

S5560X-30F-EI L3 Ethernet Switch 24SFP 8GE Combo 4SFP Plus 1Slot No Power Supply

Products Description

H3C S5560X-EI is a series of intelligent scalable GE switches with outstanding performance, high port density, and ease of installation. It offers the following benefits:
1.Industry-leading high-performance hardware architecture with H3C's state-of-the-art Comware 7 operating system.

2.Seamless wired and wireless integration on a unified switching platform. The license-based wireless access controller functionality enables wired and wireless local forwarding at the access layer, eliminates the bandwidth bottlenecks typical of a wireless controller, expands wireless deployment, and saves TCO.
3.Reliable hardware design with modular dual power supply and dual FAN design.
4.Embedded SmartMC delivers the easiest and simplest network operation and management solution.
5.Advanced free of charge enterprise features and functions like layered security, VxLAN, IRF and Macsec
6.High-density 10/100/1000Base-T autosensing Ethernet ports or 10GE SFP + fiber ports on board
7.One expansion slot,up to 9 optional interface cards that provide high density giga, 10GE, 25GE, 40GE and Multi-Giga access.
As an access device on enterprise networks, the switch can provide GE connections for desktop applications. It can also be used as a core device on small- and medium-sized enterprise networks. On MAN or industrial networks, it provides GE access for users and transmits the aggregated traffic from downstream switches to core switches.

Item	S5560X-30C-EI	S5560X-54C-EI	S5560X-30F-EI	S5560X-54F-EI	S5560X-30F-EIF
Port Switching capacity	288Gbps	336Gbps	288Gbps	336Gbps	288Gbps
Box Switching capacity	598Gbps/5.98Tbps
Packet forwarding rate	216 Mpps	252 Mpps	216 Mpps	252 Mpps	216 Mpps
Dimensions (H × W × D)	43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in)	43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in)	43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in)	43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in)	43.6 × 440 × 220 mm (1.72 × 17.32 × 8.66 in)
Weight	≤ 6.7 kg (14.77 lb)	≤ 7.0 kg (15.43 lb)	≤ 6.6 kg (14.55 lb)	≤ 6.7 kg (14.77 lb)	≤ 3.2 kg (7.05 lb)
Flash/SDRAM	512MB/2GB
Management Ethernet ports	1
Console ports	1 × RJ-45 console port 1 × Micro-USB console port Only the Micro-USB console port is available when you connect both ports.
Service ports	24 × 10/100/1000Base-T autosensing Ethernet ports (including 8 combo interfaces) 4 × 10G SFP+ ports	48 × 10/100/1000Base-T autosensing Ethernet ports 4 × 10G SFP+ ports	24 × SFP ports (including 8 combo interfaces) 4 × 10G SFP+ ports	48 × SFP ports 4 × 10G SFP+ ports	24 × SFP ports (including 8 combo interfaces) 4 × 10G SFP+ ports 2 x 40G QSFP+ ports
