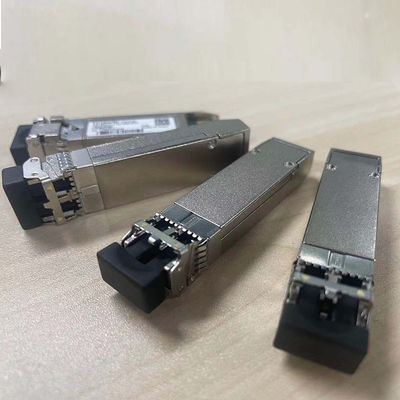

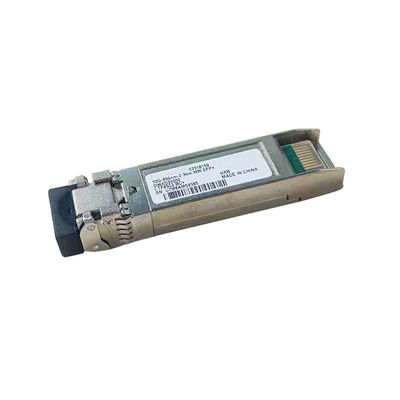

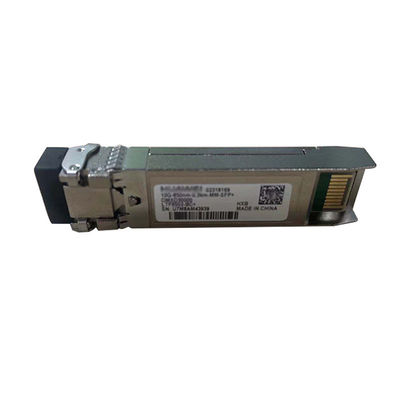

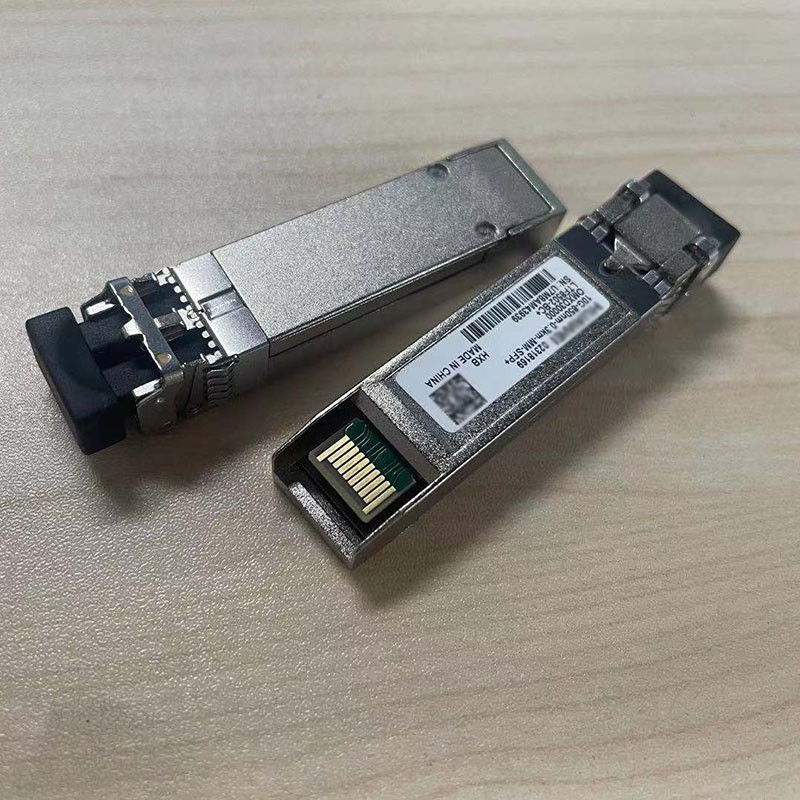

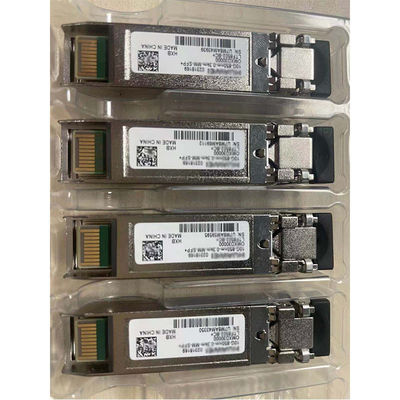

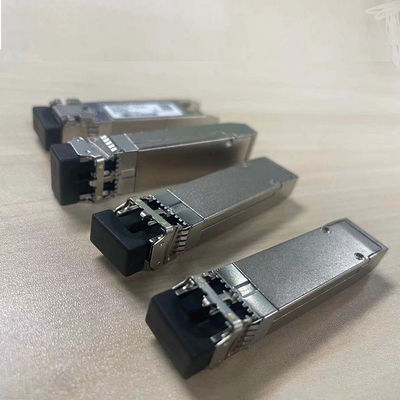

Product Details:
|
| Type: | Optical Fibers | Use: | OEM |
|---|---|---|---|
| Warranty Time: | 1 | Product Name: | Brand New Transceiver OMXD30000,SFP+,10G,Multi-mode |
| Optical Fiber Type:: | MMF | Working Case Temperature:: | 0°C To 70°C (32°F To 158°F) |
| Transmission Rate:: | 10 Gbit/s | Target Transmission Distance:: | Multimode Fiber (OM3): 0.3 Km |
| Center Wavelength:: | 850 Nm | Maximum Tx Optical Power:: | -1.0 DBm |
| Minimum Extinction Ratio:: | 3.0 DB | Minimum Tx Optical Power:: | -7.3 DBm |
| Type:: | Muti-mode Module | Port: | Beijing |
| High Light: | 0.3km distance 10g sfp transceiver,0.3km distance multimode fiber module,mmf 10g sfp transceiver |
||
|
Product Type
|
OMXD30000
|
|
|
|
|
Part Number
|
02318169
|
|
|
|
|
Connector type
|
LC
|
|
|
|
|
Optical fiber type
|
MMF
|
|
|
|
|
Working case temperature [°C(°F)]
|
0°C to 70°C (32°F to 158°F)
|
|
|
|
|
Transmission rate [bit/s]
|
10 Gbit/s
|
|
|
|
|
Target transmission distance [km]
|
Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.026 km
Multimode fiber (OM1): 0.033 km Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.066 km Multimode fiber (OM2): 0.082 km Multimode fiber (OM3): 0.3 km Multimode fiber (OM4): 0.4 km |
|
|
|
|
Form factor
|
SFP+
|
|
|
|
|
Application standard
|
10GBASE-SR
|
|
|
|
|
Transmitter Optical Characteristics
|
|
|
|
|
||||
|
Center wavelength [nm]
|
850 nm
|
|
|
|
||||
|
Maximum Tx optical power [dBm]
|
-1.0 dBm
|
|
|
|
||||
|
Minimum Tx optical power [dBm]
|
-7.3 dBm
|
|
|
|
||||
|
Minimum extinction ratio [dB]
|
3.0 dB
|
|
|
|
||||
|
Receiver Optical Characteristics
|
|
|
|
|
||||
|
Rx sensitivity [dBm]
|
-11.1 dBm
|
|
|
|
||||
|
Overload power [dBm]
|
-1.0 dBm
|
|
|
|
||||
