Product Details:
|
| Type: | Optical Fibers, MMF | Use: | - |
|---|---|---|---|
| Warranty Time: | 1 | Network: | None |

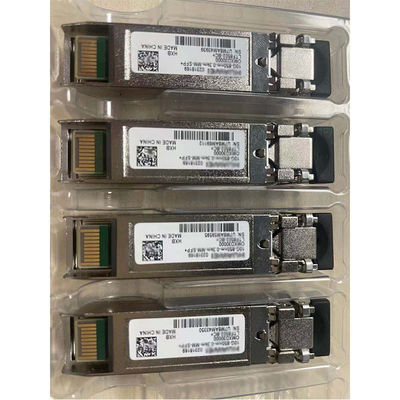

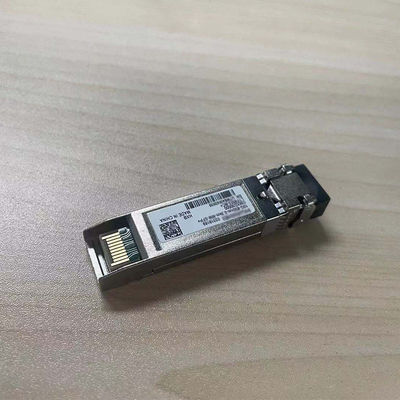

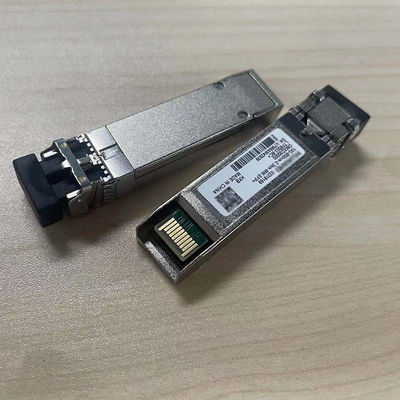

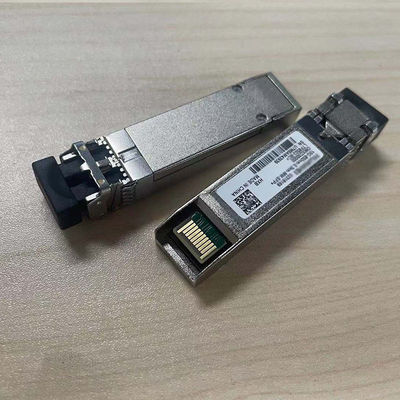

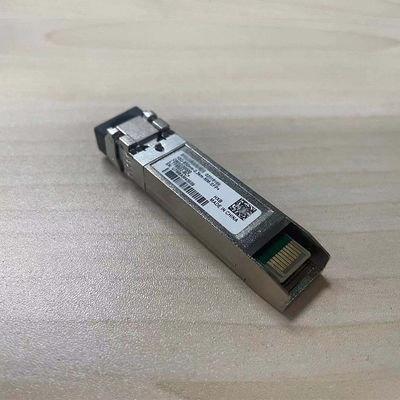

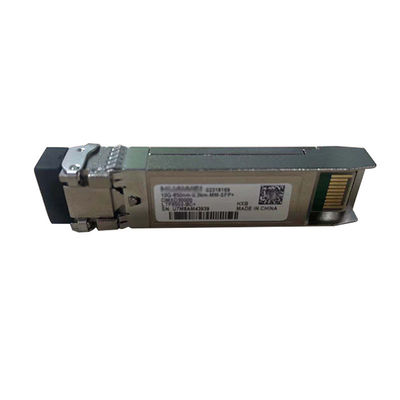

| Product Name: | 1.25G SFP Optical Transceiver Module ESFP-GE-SX-MM850 | Distance: | 0.5KM |
| Transmission Speed: | GE | Standard Compliance: | 1000base-SX |
| Connector Type: | LC | Transceiver Form Factor: | ESFP |
| Center Wavelength (nm): | 850 | Overload Power (dBm): | 0 |
| Extinction Ratio (dB): | 9 | Port: | Beijing |
| High Light: | 1.25g sfp transceiver module,sfp transceiver module 9db,0.5km sfp module |
||
|
Product Code
|
eSFP-GE-SX-MM850
|
|
|
|
|
Transceiver form factor
|
eSFP
|
|
|
|
|
Transmission speed
|
GE
|
|
|
|
|
Center wavelength (nm)
|
850
|
|
|
|
|
Standard compliance
|
1000base-SX
|
|
|
|
|
Connector type
|
LC
|
|
|
|
|
Applicable cable and maximum
transmission distance
|
· Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.22 km
· Multimode fiber (OM1): 0.275 km · Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.5 km · Multimode fiber (OM2): 0.55 km · Multimode fiber (OM3): 1 km |
|
|
|
|
Transmit power (dBm)
|
-9.5 to -2.5
|
|
|
|
|
Maximum receiver sensitivity (dBm)
|
-17.0
|
|
|
|
|
Overload power (dBm)
|
0
|
|
|
|
|
Extinction ratio (dB)
|
9
|
|
|
|
|
Operating temperature
|
0°C to 70°C (32°F to 158°F)
|
|
|
|
|
Net Dimension(D x W x H mm)
|
110 x 70 x 37
|
|
|
|
